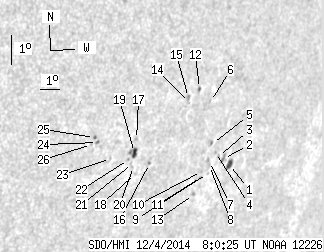

SDO HMI 2014-12-04 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.23 | 37.48 | 5.47 | 32.40 | -19.65 | 108.68 | 52.27 | 245.37 | 0.8209 | 84.3 | 74.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 08:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.99 | 4.78 | 2.78 | 4.44 | -20.12 | 111.60 | 55.19 | 245.68 | 0.8482 | 382.5 | 209.3 | |
| 0.00 | 3.16 | 0.00 | 2.90 | -19.93 | 111.17 | 54.76 | 245.79 | 0.8440 | 645.0 | 429.9 | |
| 0.00 | 0.94 | 0.00 | 0.86 | -19.86 | 110.87 | 54.45 | 245.78 | 0.8413 | 523.0 | 484.2 | |
| 0.00 | 1.02 | 0.00 | 0.93 | -19.73 | 110.64 | 54.23 | 245.87 | 0.8390 | 533.0 | 421.2 | |
| 0.00 | 0.77 | 0.00 | 0.69 | -19.45 | 110.34 | 53.92 | 246.11 | 0.8357 | 373.0 | 339.1 | |
| 0.00 | 1.11 | 0.00 | 0.97 | -18.12 | 109.62 | 53.21 | 247.47 | 0.8262 | 446.0 | 309.2 | |
| 0.00 | 0.85 | 0.00 | 0.77 | -20.01 | 110.46 | 54.04 | 245.49 | 0.8381 | 589.0 | 567.8 | |
| 0.00 | 1.02 | 0.00 | 0.93 | -20.14 | 110.52 | 54.11 | 245.36 | 0.8389 | 599.0 | 543.6 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -20.39 | 110.54 | 54.13 | 245.07 | 0.8397 | 517.0 | 569.7 | |
| 0.00 | 0.85 | 0.00 | 0.77 | -20.33 | 110.18 | 53.77 | 245.05 | 0.8365 | 546.0 | 521.6 | |
| 0.00 | 0.94 | 0.00 | 0.85 | -20.52 | 110.23 | 53.81 | 244.84 | 0.8373 | 660.0 | 613.7 | |
| 0.51 | 1.79 | 0.44 | 1.54 | -17.71 | 108.87 | 52.46 | 247.75 | 0.8184 | 425.8 | 350.9 | |
| 0.00 | 1.62 | 0.00 | 1.46 | -21.06 | 110.13 | 53.72 | 244.19 | 0.8378 | 556.0 | 448.5 | |
| 0.00 | 0.60 | 0.00 | 0.51 | -18.15 | 108.54 | 52.13 | 247.14 | 0.8163 | 545.0 | 542.3 | |
| 0.00 | 1.96 | 0.00 | 1.67 | -17.99 | 108.43 | 52.02 | 247.29 | 0.8149 | 627.0 | 518.6 | |
| 0.00 | 1.11 | 0.00 | 0.93 | -20.05 | 107.35 | 50.94 | 244.51 | 0.8103 | -518.0 | -398.5 | |
| 0.00 | 1.37 | 0.00 | 1.12 | -19.29 | 106.38 | 49.97 | 245.11 | 0.7990 | -566.0 | -374.9 | |
| 0.00 | 1.20 | 0.00 | 1.00 | -20.36 | 106.79 | 50.38 | 243.96 | 0.8060 | -351.0 | -285.6 | |
| 2.73 | 6.15 | 2.25 | 5.05 | -19.70 | 106.45 | 50.04 | 244.64 | 0.8009 | -536.2 | -574.8 | |
| 0.00 | 0.43 | 0.00 | 0.35 | -20.14 | 106.60 | 50.18 | 244.16 | 0.8035 | -439.0 | -456.0 | |
| 0.00 | 0.60 | 0.00 | 0.49 | -20.04 | 106.50 | 50.09 | 244.24 | 0.8024 | -441.0 | -497.0 | |
| 0.00 | 0.94 | 0.00 | 0.77 | -19.91 | 106.25 | 49.84 | 244.31 | 0.7996 | -586.0 | -516.3 | |
| 0.00 | 0.60 | 0.00 | 0.48 | -19.88 | 105.36 | 48.95 | 244.05 | 0.7910 | -454.0 | -392.7 | |
| 0.00 | 1.28 | 0.00 | 1.01 | -19.37 | 104.54 | 48.12 | 244.38 | 0.7813 | -512.0 | -426.0 | |
| 0.00 | 1.28 | 0.00 | 1.01 | -19.21 | 104.33 | 47.92 | 244.51 | 0.7788 | -543.0 | -582.9 | |
| 0.00 | 0.85 | 0.00 | 0.67 | -19.43 | 104.28 | 47.87 | 244.22 | 0.7790 | -734.0 | -595.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
