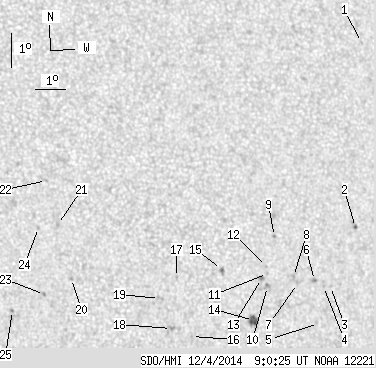

SDO HMI 2014-12-04 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.95 | 39.18 | 2.81 | 22.05 | 4.95 | 83.60 | 27.73 | 279.76 | 0.4721 | -42.6 | -1.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.67 | 11.95 | 89.04 | 33.17 | 290.52 | 0.5737 | 568.0 | 469.2 | |
| 0.43 | 1.45 | 0.25 | 0.86 | 6.42 | 88.24 | 32.37 | 281.15 | 0.5444 | -731.2 | -576.1 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 4.67 | 87.25 | 31.38 | 278.16 | 0.5265 | -654.0 | -543.4 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 4.67 | 87.01 | 31.14 | 278.22 | 0.5229 | -579.0 | -501.9 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 3.58 | 86.79 | 30.92 | 276.16 | 0.5179 | -610.0 | -574.3 | |
| 0.00 | 1.79 | 0.00 | 1.04 | 4.85 | 86.71 | 30.84 | 278.63 | 0.5187 | -876.0 | -798.7 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 4.76 | 86.12 | 30.25 | 278.61 | 0.5098 | -704.0 | -534.0 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 4.97 | 85.99 | 30.12 | 279.05 | 0.5083 | -862.0 | -750.6 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 6.16 | 85.41 | 29.54 | 281.56 | 0.5024 | 681.0 | 580.5 | |
| 0.00 | 2.13 | 0.00 | 1.21 | 4.68 | 85.09 | 29.22 | 278.70 | 0.4942 | -945.0 | -808.8 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 5.07 | 85.10 | 29.24 | 279.47 | 0.4953 | -687.0 | -520.8 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 5.27 | 85.08 | 29.21 | 279.89 | 0.4954 | -841.0 | -635.7 | |
| 0.00 | 1.96 | 0.00 | 1.12 | 4.92 | 84.89 | 29.03 | 279.23 | 0.4918 | -980.0 | -842.6 | |
| 4.18 | 7.09 | 2.37 | 4.01 | 3.68 | 84.57 | 28.70 | 276.77 | 0.4846 | -990.6 | -747.9 | |
| 0.34 | 3.33 | 0.19 | 1.87 | 5.19 | 83.56 | 27.69 | 280.20 | 0.4722 | 920.5 | 666.6 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 3.21 | 82.48 | 26.61 | 276.21 | 0.4518 | 668.0 | 550.7 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 4.96 | 82.05 | 26.18 | 280.21 | 0.4485 | 592.0 | 509.4 | |
| 0.00 | 2.22 | 0.00 | 1.22 | 3.45 | 81.82 | 25.96 | 276.90 | 0.4420 | 867.0 | 761.7 | |
| 0.00 | 2.65 | 0.00 | 1.46 | 4.34 | 81.46 | 25.59 | 279.01 | 0.4380 | 514.0 | 568.6 | |
| 0.00 | 1.37 | 0.00 | 0.74 | 4.95 | 78.62 | 22.75 | 281.54 | 0.3950 | 668.0 | 568.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 6.55 | 78.24 | 22.37 | 285.73 | 0.3946 | 781.0 | 637.4 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 7.86 | 77.96 | 22.09 | 289.13 | 0.3960 | 770.0 | 609.2 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 4.48 | 77.74 | 21.87 | 280.74 | 0.3797 | 916.0 | 714.4 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 6.46 | 77.63 | 21.76 | 285.91 | 0.3847 | 808.0 | 688.4 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 4.01 | 76.71 | 20.84 | 279.94 | 0.3619 | 928.0 | 809.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
