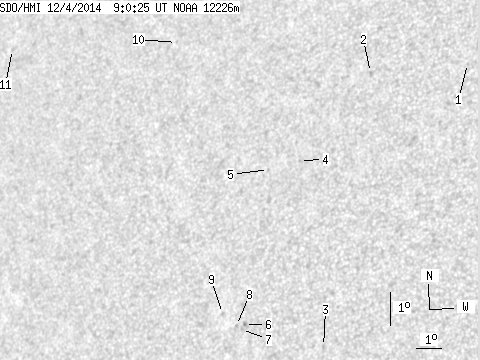

SDO HMI 2014-12-04 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.10 | 0.00 | 7.39 | 12.27 | 15.79 | -40.08 | 71.91 | 0.6625 | -556.5 | -428.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.26 | 16.78 | 24.38 | -31.49 | 60.58 | 0.5764 | -610.0 | -436.2 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 16.50 | 20.85 | -35.02 | 63.24 | 0.6185 | -743.0 | -636.7 | |
| 0.00 | 1.37 | 0.00 | 0.84 | 8.21 | 20.38 | -35.49 | 76.67 | 0.5928 | -640.0 | -536.0 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 13.80 | 18.68 | -37.19 | 68.42 | 0.6335 | -602.0 | -496.6 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 13.52 | 17.54 | -38.33 | 69.33 | 0.6468 | -589.0 | -559.4 | |
| 0.00 | 1.37 | 0.00 | 0.87 | 8.85 | 17.34 | -38.53 | 76.52 | 0.6352 | -793.0 | -680.9 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 8.70 | 17.24 | -38.62 | 76.78 | 0.6361 | -642.0 | -539.6 | |
| 0.00 | 1.20 | 0.00 | 0.77 | 8.82 | 17.04 | -38.83 | 76.65 | 0.6391 | -678.0 | -590.5 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 9.18 | 16.45 | -39.42 | 76.26 | 0.6476 | -569.0 | -498.7 | |
| 0.00 | 0.68 | 0.00 | 0.48 | 17.40 | 12.89 | -42.98 | 65.74 | 0.7160 | -449.0 | -413.5 | |
| 0.00 | 1.62 | 0.00 | 1.31 | 17.15 | 5.53 | -50.33 | 68.49 | 0.7929 | 194.0 | 146.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
