SDO HMI 2014-12-04 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.38 | 30.65 | 4.87 | 27.56 | -19.72 | 109.25 | 53.93 | 245.78 | 0.8359 | 165.5 | 219.4 | |
|
previous
or next observation for the same group /

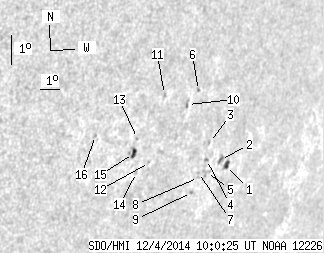

back to the solar disc SDO HMI 2014-12-04 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.22 | 3.84 | 2.12 | 3.68 | -20.16 | 111.65 | 56.33 | 245.93 | 0.8577 | 386.0 | 234.4 | |
| 0.85 | 3.16 | 0.81 | 2.99 | -19.97 | 111.20 | 55.88 | 246.04 | 0.8536 | 499.9 | 385.7 | |
| 0.00 | 1.11 | 0.00 | 1.02 | -19.43 | 110.31 | 54.98 | 246.43 | 0.8448 | 494.0 | 427.6 | |
| 0.00 | 1.71 | 0.00 | 1.58 | -19.96 | 110.42 | 55.10 | 245.84 | 0.8470 | 573.0 | 525.0 | |
| 0.00 | 3.76 | 0.00 | 3.51 | -20.38 | 110.64 | 55.31 | 245.42 | 0.8497 | 589.0 | 511.2 | |
| 0.00 | 0.94 | 0.00 | 0.83 | -17.79 | 108.94 | 53.62 | 247.98 | 0.8292 | 593.0 | 475.5 | |
| 0.00 | 0.94 | 0.00 | 0.87 | -20.37 | 110.19 | 54.87 | 245.31 | 0.8460 | 594.0 | 551.3 | |
| 0.00 | 0.94 | 0.00 | 0.87 | -20.53 | 110.27 | 54.95 | 245.15 | 0.8470 | 733.0 | 639.2 | |
| 0.00 | 1.37 | 0.00 | 1.26 | -21.01 | 110.14 | 54.82 | 244.57 | 0.8471 | 555.0 | 475.5 | |
| 0.00 | 2.73 | 0.00 | 2.39 | -18.22 | 108.56 | 53.24 | 247.36 | 0.8266 | 717.0 | 551.3 | |
| 0.00 | 1.62 | 0.00 | 1.38 | -17.90 | 107.24 | 51.91 | 247.38 | 0.8137 | -306.0 | -349.8 | |
| 0.00 | 0.68 | 0.00 | 0.59 | -20.03 | 107.41 | 52.09 | 244.90 | 0.8208 | -522.0 | -361.2 | |
| 0.00 | 0.94 | 0.00 | 0.79 | -19.27 | 106.46 | 51.13 | 245.51 | 0.8099 | -452.0 | -332.5 | |
| 0.00 | 1.02 | 0.00 | 0.88 | -20.34 | 106.89 | 51.57 | 244.37 | 0.8169 | -349.0 | -266.1 | |
| 2.31 | 4.95 | 1.94 | 4.17 | -19.74 | 106.46 | 51.14 | 244.95 | 0.8113 | -463.1 | -452.0 | |
| 0.00 | 0.94 | 0.00 | 0.75 | -19.16 | 104.35 | 49.03 | 244.96 | 0.7895 | -587.0 | -582.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
