SDO HMI 2014-12-04 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.26 | 27.99 | 13.01 | 51.00 | -15.85 | 127.62 | 73.39 | 253.34 | 0.9622 | 31.6 | 62.2 | |
|
previous
or next observation for the same group /

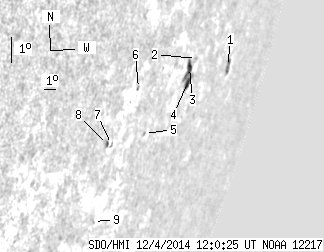

back to the solar disc SDO HMI 2014-12-04 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.04 | 0.00 | 12.46 | -15.29 | 132.03 | 77.81 | 254.28 | 0.9804 | 244.0 | 93.6 | |
| 0.00 | 1.02 | 0.00 | 1.87 | -15.00 | 127.81 | 73.58 | 254.26 | 0.9638 | -257.0 | -204.7 | |
| 3.59 | 15.02 | 6.38 | 26.86 | -15.28 | 127.30 | 73.07 | 253.94 | 0.9616 | 281.9 | 175.0 | |
| 3.67 | -3.00 | 6.63 | -3.00 | -15.74 | 127.51 | 73.28 | 253.48 | 0.9628 | -124.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.73 | -17.29 | 124.61 | 70.38 | 251.57 | 0.9494 | 239.0 | 205.9 | |
| 0.00 | 1.11 | 0.00 | 1.58 | -15.88 | 122.93 | 68.71 | 252.86 | 0.9394 | -139.0 | -115.2 | |
| 0.00 | 1.62 | 0.00 | 2.24 | -17.61 | 121.97 | 67.74 | 250.90 | 0.9351 | -306.0 | -198.3 | |
| 0.00 | 2.05 | 0.00 | 2.79 | -17.60 | 121.64 | 67.41 | 250.86 | 0.9331 | -443.0 | -382.2 | |
| 0.00 | 1.02 | 0.00 | 1.47 | -20.02 | 122.50 | 68.28 | 248.42 | 0.9401 | 324.0 | 332.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
