SDO HMI 2014-12-04 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 45.98 | 0.84 | 26.44 | 5.05 | 83.54 | 29.86 | 279.30 | 0.5044 | -40.5 | -54.8 | |
|
previous
or next observation for the same group /

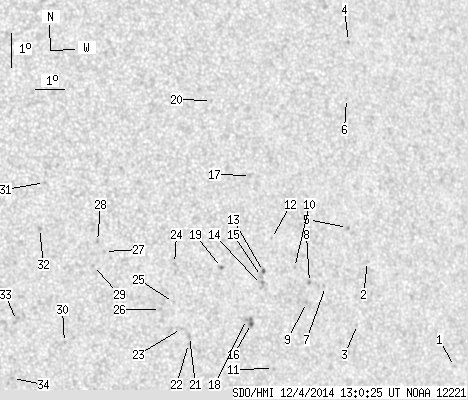

back to the solar disc SDO HMI 2014-12-04 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.75 | 2.31 | 91.90 | 38.22 | 273.15 | 0.6214 | -610.0 | -468.1 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 5.44 | 88.84 | 35.16 | 278.75 | 0.5822 | -616.0 | -497.4 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 3.57 | 88.37 | 34.69 | 275.61 | 0.5730 | -596.0 | -490.8 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 12.01 | 88.87 | 35.19 | 289.70 | 0.6009 | 619.0 | 438.9 | |
| 0.00 | 1.19 | 0.00 | 0.72 | 6.45 | 88.19 | 34.51 | 280.64 | 0.5750 | -785.0 | -641.6 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 10.30 | 88.55 | 34.87 | 287.03 | 0.5906 | -720.0 | -533.8 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 4.70 | 87.28 | 33.60 | 277.78 | 0.5588 | -517.0 | -497.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 4.83 | 86.72 | 33.04 | 278.11 | 0.5509 | -844.0 | -716.8 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 4.23 | 86.58 | 32.90 | 277.06 | 0.5480 | -743.0 | -666.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 5.27 | 86.21 | 32.53 | 279.04 | 0.5444 | -627.0 | -599.7 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 2.29 | 85.35 | 31.67 | 273.61 | 0.5278 | -687.0 | -580.8 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 6.14 | 85.46 | 31.78 | 280.83 | 0.5353 | 558.0 | 366.9 | |
| 0.60 | 1.62 | 0.35 | 0.94 | 5.16 | 85.12 | 31.44 | 279.09 | 0.5282 | -725.4 | -637.4 | |
| 0.00 | 3.84 | 0.00 | 2.23 | 4.78 | 85.03 | 31.35 | 278.39 | 0.5262 | -516.0 | -730.3 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 5.01 | 85.04 | 31.36 | 278.83 | 0.5268 | -862.0 | -787.7 | |
| 0.85 | 3.50 | 0.49 | 2.02 | 3.62 | 84.63 | 30.95 | 276.26 | 0.5184 | -940.5 | -816.7 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 8.02 | 84.87 | 31.19 | 284.50 | 0.5319 | -768.0 | -581.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 3.74 | 84.46 | 30.78 | 276.52 | 0.5161 | -941.0 | -790.7 | |
| 0.00 | 1.96 | 0.00 | 1.13 | 5.29 | 83.68 | 30.00 | 279.71 | 0.5071 | 762.0 | 689.5 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 10.26 | 83.73 | 30.05 | 289.17 | 0.5238 | -631.0 | -517.3 | |
| 0.00 | 2.56 | 0.00 | 1.45 | 3.25 | 82.50 | 28.82 | 275.89 | 0.4858 | 596.0 | 410.6 | |
| 0.00 | 0.43 | 0.00 | 0.24 | 3.04 | 82.46 | 28.78 | 275.47 | 0.4849 | 401.0 | 408.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 3.49 | 82.23 | 28.55 | 276.43 | 0.4821 | 585.0 | 479.0 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 5.41 | 82.08 | 28.40 | 280.45 | 0.4835 | 568.0 | 495.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 4.26 | 81.99 | 28.31 | 278.09 | 0.4797 | 491.0 | 457.3 | |
| 0.00 | 1.37 | 0.00 | 0.77 | 4.05 | 81.55 | 27.87 | 277.77 | 0.4726 | 823.0 | 641.9 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 5.78 | 79.76 | 26.08 | 282.07 | 0.4492 | 718.0 | 614.1 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 6.08 | 79.55 | 25.87 | 282.82 | 0.4468 | 841.0 | 627.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 5.37 | 79.38 | 25.70 | 281.31 | 0.4421 | 735.0 | 549.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 3.09 | 78.35 | 24.66 | 276.38 | 0.4211 | 723.0 | 582.5 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 7.84 | 77.91 | 24.23 | 287.62 | 0.4283 | 719.0 | 576.0 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 6.47 | 77.66 | 23.98 | 284.63 | 0.4192 | 784.0 | 650.2 | |
| 0.00 | 3.07 | 0.00 | 1.66 | 3.75 | 76.81 | 23.13 | 278.42 | 0.3979 | 699.0 | 671.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 2.03 | 76.64 | 22.96 | 274.12 | 0.3926 | 810.0 | 549.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
