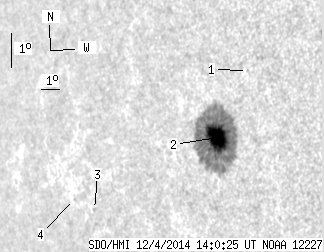

SDO HMI 2014-12-04 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.92 | 209.88 | 26.24 | 173.05 | -3.76 | 0.28 | -52.85 | 95.05 | 0.8007 | 737.0 | 186.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.20 | -1.75 | 1.92 | -51.21 | 92.61 | 0.7822 | -446.0 | -365.7 | |
| 31.92 | 208.08 | 26.24 | 171.31 | -3.74 | 0.34 | -52.79 | 95.04 | 0.8001 | 865.0 | 192.8 | |
| 0.00 | 0.94 | 0.00 | 0.93 | -5.92 | 353.44 | -59.69 | 97.12 | 0.8674 | -361.0 | -327.2 | |
| 0.00 | 0.60 | 0.00 | 0.61 | -5.63 | 352.23 | -60.91 | 96.69 | 0.8776 | -341.0 | -347.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
