SDO HMI 2014-12-04 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.29 | 16.46 | 10.95 | 38.35 | -15.53 | 129.12 | 77.09 | 253.98 | 0.9771 | 36.9 | 44.1 | |
|
previous
or next observation for the same group /

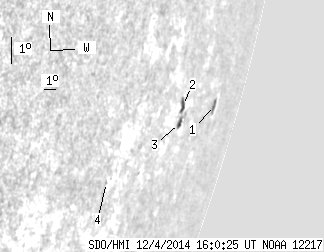

back to the solar disc SDO HMI 2014-12-04 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.86 | 0.00 | 14.68 | -15.34 | 132.16 | 80.13 | 254.37 | 0.9873 | -16.0 | -7.6 | |
| 2.82 | 10.92 | 5.79 | 22.64 | -15.29 | 127.37 | 75.35 | 254.11 | 0.9714 | 195.7 | 144.2 | |
| 2.47 | -2.00 | 5.16 | -2.00 | -15.85 | 127.61 | 75.58 | 253.56 | 0.9725 | -55.2 | 999999 | |
| 0.00 | 0.68 | 0.00 | 1.03 | -17.62 | 121.66 | 69.63 | 251.13 | 0.9457 | -355.0 | -357.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
