SDO HMI 2014-12-04 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.56 | 53.36 | 1.35 | 28.47 | -14.85 | 36.45 | -15.58 | 135.64 | 0.3729 | -256.3 | -356.9 | |
|
previous
or next observation for the same group /

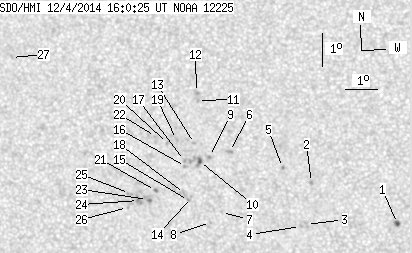

back to the solar disc SDO HMI 2014-12-04 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 2.56 | 0.76 | 1.34 | -16.30 | 42.55 | -9.48 | 151.26 | 0.3302 | 1046.2 | 806.3 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -15.04 | 39.93 | -12.10 | 142.84 | 0.3365 | 1035.0 | 734.7 | |
| 0.00 | 2.65 | 0.00 | 1.40 | -16.34 | 39.70 | -12.33 | 144.62 | 0.3556 | 836.0 | 627.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -16.40 | 39.50 | -12.53 | 144.31 | 0.3583 | 831.0 | 746.3 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -14.59 | 39.05 | -12.98 | 140.03 | 0.3398 | 872.0 | 752.1 | |
| 0.00 | 2.47 | 0.00 | 1.31 | -14.10 | 37.42 | -14.61 | 135.74 | 0.3520 | -880.0 | -776.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -15.97 | 37.03 | -15.00 | 138.63 | 0.3780 | 700.0 | 543.3 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -16.28 | 36.66 | -15.37 | 138.50 | 0.3857 | 675.0 | 512.9 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -14.25 | 36.78 | -15.25 | 134.85 | 0.3611 | -915.0 | -804.3 | |
| 1.11 | 8.02 | 0.59 | 4.27 | -14.41 | 36.45 | -15.58 | 134.56 | 0.3666 | -1034.8 | -690.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -12.55 | 36.52 | -15.51 | 130.72 | 0.3460 | -913.0 | -806.9 | |
| 0.00 | 2.30 | 0.00 | 1.21 | -12.31 | 36.50 | -15.53 | 130.14 | 0.3437 | -863.0 | -707.1 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -13.86 | 36.33 | -15.70 | 133.22 | 0.3620 | -910.0 | -729.3 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -15.51 | 36.11 | -15.92 | 136.11 | 0.3828 | 569.0 | 446.6 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -15.60 | 36.01 | -16.02 | 136.10 | 0.3850 | 774.0 | 654.9 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -14.56 | 36.00 | -16.03 | 134.06 | 0.3736 | -684.0 | -517.3 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -14.38 | 35.98 | -16.05 | 133.66 | 0.3719 | -847.0 | -772.9 | |
| 0.00 | 2.73 | 0.00 | 1.46 | -15.39 | 35.90 | -16.13 | 135.51 | 0.3839 | 199.0 | 203.8 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -13.73 | 35.77 | -16.26 | 131.99 | 0.3675 | -1056.0 | -790.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -13.86 | 35.48 | -16.55 | 131.75 | 0.3723 | -720.0 | -618.2 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -15.30 | 34.98 | -17.05 | 133.79 | 0.3934 | -1014.0 | -832.0 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -13.64 | 35.11 | -16.92 | 130.70 | 0.3746 | -661.0 | -521.0 | |
| 0.00 | 4.44 | 0.00 | 2.40 | -15.57 | 34.70 | -17.33 | 133.86 | 0.3997 | -987.0 | -813.3 | |
| 0.00 | 4.44 | 0.00 | 2.40 | -15.60 | 34.41 | -17.62 | 133.45 | 0.4034 | -975.0 | -773.3 | |
| 0.00 | 2.22 | 0.00 | 1.20 | -15.39 | 34.14 | -17.89 | 132.62 | 0.4043 | -580.0 | -652.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -15.82 | 34.03 | -18.00 | 133.27 | 0.4100 | -614.0 | -522.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -11.26 | 30.69 | -21.34 | 119.56 | 0.4121 | -811.0 | -663.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
