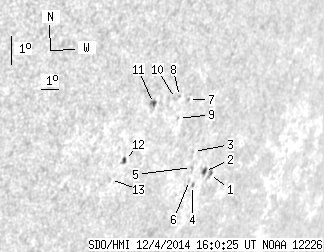

SDO HMI 2014-12-04 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.78 | 22.43 | 4.63 | 22.08 | -19.43 | 109.57 | 57.54 | 247.06 | 0.8655 | 238.6 | 223.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.75 | 0.00 | 3.96 | -20.26 | 111.75 | 59.72 | 246.64 | 0.8845 | 556.0 | 309.9 | |
| 1.62 | 3.41 | 1.69 | 3.55 | -20.16 | 111.38 | 59.35 | 246.66 | 0.8815 | 454.6 | 360.0 | |
| 0.00 | 0.60 | 0.00 | 0.60 | -19.52 | 110.32 | 58.29 | 247.14 | 0.8722 | 459.0 | 427.7 | |
| 0.43 | 1.54 | 0.44 | 1.58 | -20.60 | 110.91 | 58.88 | 246.07 | 0.8787 | 394.2 | 349.4 | |
| 0.00 | 1.19 | 0.00 | 1.21 | -20.03 | 110.50 | 58.47 | 246.61 | 0.8745 | 504.0 | 477.1 | |
| 0.00 | 1.02 | 0.00 | 1.04 | -20.44 | 110.62 | 58.60 | 246.18 | 0.8762 | 528.0 | 472.8 | |
| 0.00 | 1.02 | 0.00 | 0.99 | -17.88 | 109.15 | 57.12 | 248.73 | 0.8597 | 265.0 | 257.4 | |
| 0.00 | 0.94 | 0.00 | 0.89 | -17.78 | 108.58 | 56.55 | 248.71 | 0.8548 | 610.0 | 502.7 | |
| 0.00 | 0.51 | 0.00 | 0.49 | -18.47 | 108.87 | 56.84 | 247.99 | 0.8585 | 500.0 | 416.2 | |
| 0.00 | 2.05 | 0.00 | 1.93 | -17.85 | 108.39 | 56.36 | 248.60 | 0.8533 | 301.0 | 286.6 | |
| 1.45 | 3.33 | 1.33 | 3.05 | -17.99 | 107.23 | 55.20 | 248.15 | 0.8436 | -436.4 | -274.3 | |
| 1.28 | 2.39 | 1.17 | 2.17 | -19.77 | 106.52 | 54.49 | 245.91 | 0.8413 | -400.7 | -429.3 | |
| 0.00 | 0.68 | 0.00 | 0.62 | -20.37 | 106.06 | 54.03 | 245.09 | 0.8387 | -519.0 | -462.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
