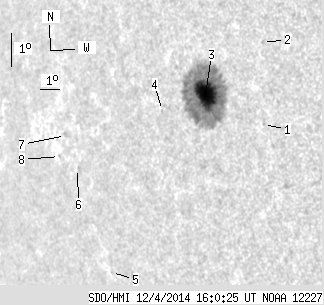

SDO HMI 2014-12-04 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.75 | 208.11 | 28.66 | 167.60 | -3.81 | 0.18 | -51.85 | 95.20 | 0.7901 | 735.8 | 190.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-04 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.52 | -4.64 | 2.95 | -49.08 | 96.52 | 0.7604 | 577.0 | 451.4 | |
| 0.00 | 1.11 | 0.00 | 0.84 | -2.21 | 3.08 | -48.95 | 93.32 | 0.7572 | 540.0 | 402.5 | |
| 35.75 | 201.98 | 28.66 | 162.11 | -3.76 | 0.32 | -51.71 | 95.15 | 0.7887 | 905.6 | 200.8 | |
| 0.00 | 0.68 | 0.00 | 0.58 | -4.25 | 358.15 | -53.88 | 95.59 | 0.8116 | 160.0 | 191.1 | |
| 0.00 | 0.68 | 0.00 | 0.64 | -9.11 | 354.59 | -57.44 | 101.05 | 0.8500 | 438.0 | 378.0 | |
| 0.00 | 0.85 | 0.00 | 0.82 | -6.01 | 353.33 | -58.70 | 97.29 | 0.8588 | -474.0 | -370.3 | |
| 0.00 | 1.11 | 0.00 | 1.08 | -5.03 | 352.80 | -59.23 | 96.11 | 0.8629 | -555.0 | -500.5 | |
| 0.00 | 1.02 | 0.00 | 1.01 | -5.66 | 352.34 | -59.69 | 96.80 | 0.8672 | -401.0 | -376.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
