SDO HMI 2014-12-04 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.66 | 0.00 | 6.49 | 14.52 | 16.16 | -32.55 | 64.65 | 0.5739 | -441.0 | -372.4 | |
|
previous
or next observation for the same group /

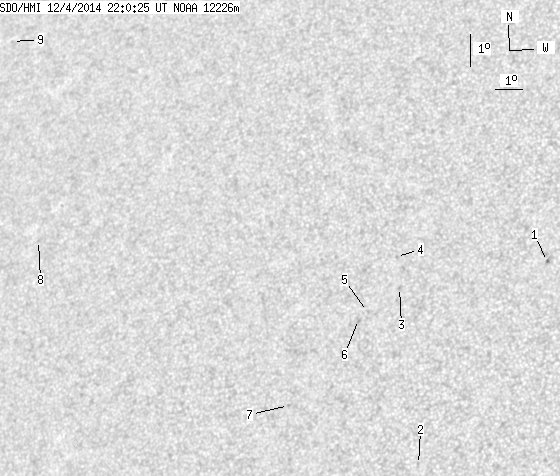

back to the solar disc SDO HMI 2014-12-04 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.67 | 15.25 | 24.16 | -24.55 | 57.38 | 0.4778 | -836.0 | -685.9 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 9.11 | 20.45 | -28.26 | 72.00 | 0.4936 | -669.0 | -522.0 | |
| 0.00 | 1.71 | 0.00 | 1.00 | 14.45 | 19.19 | -29.53 | 62.99 | 0.5378 | -796.0 | -555.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 15.39 | 18.94 | -29.77 | 61.57 | 0.5466 | -625.0 | -459.8 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 13.71 | 18.16 | -30.55 | 64.94 | 0.5472 | -684.0 | -498.1 | |
| 0.00 | 2.30 | 0.00 | 1.36 | 13.47 | 17.88 | -30.83 | 65.54 | 0.5497 | -772.0 | -586.7 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 10.87 | 15.73 | -32.98 | 71.15 | 0.5671 | -645.0 | -522.2 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 15.85 | 5.08 | -43.63 | 68.02 | 0.7182 | 581.0 | 479.0 | |
| 0.00 | 0.85 | 0.00 | 0.67 | 22.05 | 1.76 | -46.95 | 61.31 | 0.7744 | 477.0 | 393.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
