SDO HMI 2014-12-04 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 228.34 | 1269.91 | 151.54 | 842.92 | -19.69 | 85.33 | 37.17 | 238.81 | 0.6663 | 523.7 | 252.8 | |
|
previous
or next observation for the same group /

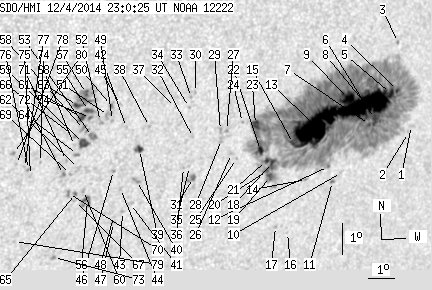

back to the solar disc SDO HMI 2014-12-04 23:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.44 | -19.85 | 89.47 | 41.31 | 240.96 | 0.7125 | -310.0 | -271.0 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -20.07 | 89.41 | 41.25 | 240.65 | 0.7129 | -324.0 | -314.0 | |
| 0.00 | 1.45 | 0.00 | 0.99 | -17.25 | 88.18 | 40.02 | 243.83 | 0.6867 | -585.0 | -411.9 | |
| 1.37 | 1103.68 | 0.94 | 740.80 | -18.75 | 88.55 | 40.39 | 241.97 | 0.6975 | 568.5 | 347.8 | |
| 5.63 | -4.00 | 3.87 | -4.00 | -18.84 | 88.29 | 40.13 | 241.72 | 0.6950 | 689.4 | 999999 | |
| 3.41 | -4.00 | 2.34 | -4.00 | -19.62 | 87.86 | 39.70 | 240.46 | 0.6940 | 525.3 | 999999 | |
| 1.11 | -4.00 | 0.76 | -4.00 | -19.81 | 87.72 | 39.56 | 240.13 | 0.6933 | 575.2 | 999999 | |
| 72.11 | -4.00 | 48.99 | -4.00 | -19.18 | 87.41 | 39.25 | 240.81 | 0.6869 | 1114.3 | 999999 | |
| 13.99 | -4.00 | 9.39 | -4.00 | -18.98 | 86.63 | 38.47 | 240.66 | 0.6772 | 1202.0 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.82 | -21.32 | 87.04 | 38.88 | 237.75 | 0.6937 | 504.0 | 341.4 | |
| 0.51 | 1.88 | 0.35 | 1.28 | -21.61 | 86.76 | 38.60 | 237.22 | 0.6922 | -458.7 | -317.4 | |
| 0.77 | -4.00 | 0.52 | -4.00 | -21.13 | 86.45 | 38.29 | 237.67 | 0.6863 | -135.0 | 999999 | |
| 85.33 | -4.00 | 56.77 | -4.00 | -19.86 | 85.56 | 37.40 | 238.86 | 0.6697 | 1311.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.75 | -21.54 | 85.68 | 37.52 | 236.68 | 0.6804 | 38.0 | 130.2 | |
| 0.26 | -4.00 | 0.17 | -4.00 | -20.39 | 84.83 | 36.67 | 237.71 | 0.6646 | 994.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -23.23 | 85.45 | 37.29 | 234.32 | 0.6878 | 453.0 | 392.7 | |
| 0.00 | 1.19 | 0.00 | 0.81 | -23.04 | 84.91 | 36.75 | 234.23 | 0.6809 | 557.0 | 471.4 | |
| 2.30 | -4.00 | 1.52 | -4.00 | -20.99 | 84.18 | 36.02 | 236.48 | 0.6608 | -244.3 | 999999 | |
| 3.33 | -4.00 | 2.20 | -4.00 | -21.43 | 84.22 | 36.06 | 235.91 | 0.6640 | -449.9 | 999999 | |
| 1.45 | -4.00 | 0.95 | -4.00 | -21.24 | 84.05 | 35.89 | 236.06 | 0.6610 | -749.4 | 999999 | |
| 1.79 | -4.00 | 1.18 | -4.00 | -20.92 | 83.92 | 35.76 | 236.41 | 0.6577 | 652.3 | 999999 | |
| 3.33 | -4.00 | 2.17 | -4.00 | -20.60 | 83.60 | 35.44 | 236.64 | 0.6522 | 1066.3 | 999999 | |
| 5.80 | -4.00 | 3.74 | -4.00 | -19.78 | 83.20 | 35.04 | 237.51 | 0.6428 | -501.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -19.71 | 82.68 | 34.52 | 237.27 | 0.6365 | -558.0 | -464.2 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -20.85 | 82.74 | 34.58 | 235.72 | 0.6442 | 579.0 | 585.6 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -20.69 | 82.51 | 34.35 | 235.78 | 0.6406 | 820.0 | 627.2 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -19.96 | 82.13 | 33.97 | 236.54 | 0.6318 | -477.0 | -296.5 | |
| 0.00 | 3.67 | 0.00 | 2.34 | -20.25 | 82.01 | 33.85 | 236.06 | 0.6323 | 358.0 | 396.3 | |
| 0.00 | 2.05 | 0.00 | 1.30 | -19.96 | 81.90 | 33.74 | 236.39 | 0.6293 | -578.0 | -482.4 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -18.76 | 80.69 | 32.53 | 237.26 | 0.6077 | -658.0 | -568.0 | |
| 1.19 | 4.78 | 0.76 | 3.04 | -21.45 | 81.25 | 33.09 | 233.85 | 0.6317 | 712.4 | 559.3 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -20.18 | 80.94 | 32.78 | 235.39 | 0.6197 | 672.0 | 550.8 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -18.92 | 80.58 | 32.42 | 236.95 | 0.6073 | -780.0 | -622.5 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -19.23 | 80.57 | 32.41 | 236.49 | 0.6093 | -669.0 | -512.4 | |
| 0.00 | 0.51 | 0.00 | 0.32 | -21.09 | 81.01 | 32.85 | 234.16 | 0.6266 | 673.0 | 553.7 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -21.13 | 80.79 | 32.63 | 233.95 | 0.6244 | 565.0 | 513.4 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -19.23 | 80.05 | 31.89 | 236.11 | 0.6033 | -686.0 | -583.0 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -19.82 | 79.22 | 31.06 | 234.61 | 0.5978 | -557.0 | -409.8 | |
| 3.33 | 5.12 | 2.06 | 3.16 | -20.54 | 79.02 | 30.86 | 233.39 | 0.6006 | -842.8 | -635.2 | |
| 0.00 | 3.58 | 0.00 | 2.23 | -21.53 | 79.13 | 30.97 | 232.09 | 0.6090 | 872.0 | 770.8 | |
| 0.00 | 2.47 | 0.00 | 1.55 | -22.26 | 79.09 | 30.93 | 231.04 | 0.6140 | -241.0 | -207.6 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -19.85 | 78.39 | 30.23 | 233.90 | 0.5884 | -786.0 | -621.4 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -22.52 | 78.85 | 30.69 | 230.49 | 0.6134 | -588.0 | -439.1 | |
| 0.00 | 2.05 | 0.00 | 1.27 | -21.78 | 78.60 | 30.44 | 231.30 | 0.6051 | -409.0 | -281.5 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -19.12 | 78.02 | 29.86 | 234.67 | 0.5789 | -585.0 | -443.7 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -21.21 | 78.21 | 30.05 | 231.78 | 0.5964 | 737.0 | 675.7 | |
| 0.00 | 1.28 | 0.00 | 0.80 | -22.87 | 78.60 | 30.44 | 229.81 | 0.6134 | -718.0 | -648.9 | |
| 0.00 | 0.51 | 0.00 | 0.32 | -22.68 | 78.55 | 30.39 | 230.03 | 0.6114 | -380.0 | -460.3 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -19.62 | 77.84 | 29.68 | 233.76 | 0.5804 | -518.0 | -457.2 | |
| 0.51 | 2.73 | 0.31 | 1.65 | -19.15 | 77.71 | 29.55 | 234.36 | 0.5754 | -786.0 | -643.8 | |
| 0.00 | 3.93 | 0.00 | 2.38 | -19.46 | 77.66 | 29.50 | 233.85 | 0.5772 | -693.0 | -614.6 | |
| 0.00 | 2.90 | 0.00 | 1.75 | -19.65 | 77.41 | 29.25 | 233.36 | 0.5757 | -623.0 | -560.2 | |
| 0.00 | 5.55 | 0.00 | 3.36 | -20.12 | 77.22 | 29.06 | 232.49 | 0.5771 | -680.0 | -624.3 | |
| 0.77 | 15.53 | 0.46 | 9.33 | -19.52 | 77.02 | 28.86 | 233.21 | 0.5703 | -855.0 | -751.8 | |
| 2.73 | -54.00 | 1.64 | -54.00 | -19.30 | 76.91 | 28.75 | 233.44 | 0.5673 | -887.1 | 999999 | |
| 3.16 | 8.70 | 1.94 | 5.36 | -22.16 | 77.47 | 29.31 | 229.81 | 0.5958 | -650.2 | -521.3 | |
| 2.30 | 29.87 | 1.38 | 17.85 | -18.77 | 76.74 | 28.58 | 234.10 | 0.5613 | -960.7 | -632.6 | |
| 0.00 | 4.86 | 0.00 | 2.93 | -19.90 | 76.88 | 28.72 | 232.53 | 0.5716 | -810.0 | -793.4 | |
| 5.46 | 8.11 | 3.30 | 4.90 | -20.34 | 76.94 | 28.78 | 231.92 | 0.5756 | -856.5 | -602.5 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -21.84 | 77.25 | 29.09 | 230.06 | 0.5909 | -695.0 | -574.3 | |
| 3.84 | -54.00 | 2.30 | -54.00 | -19.52 | 76.70 | 28.54 | 232.93 | 0.5666 | -1037.0 | 999999 | |
| 0.00 | 3.33 | 0.00 | 2.02 | -21.13 | 76.92 | 28.76 | 230.76 | 0.5816 | -587.0 | -498.2 | |
| 2.56 | -57.00 | 1.53 | -57.00 | -19.14 | 76.49 | 28.33 | 233.31 | 0.5612 | -1030.9 | 999999 | |
| 0.00 | 2.05 | 0.00 | 1.24 | -20.69 | 76.79 | 28.63 | 231.29 | 0.5767 | -786.0 | -727.8 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -21.93 | 76.98 | 28.82 | 229.69 | 0.5887 | -823.0 | -731.3 | |
| 0.00 | 1.37 | 0.00 | 0.82 | -20.12 | 76.57 | 28.41 | 231.92 | 0.5697 | -851.0 | -797.0 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -22.16 | 77.00 | 28.84 | 229.39 | 0.5907 | -549.0 | -471.4 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -20.40 | 76.62 | 28.46 | 231.56 | 0.5726 | -742.0 | -584.4 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -21.32 | 76.67 | 28.51 | 230.27 | 0.5804 | -803.0 | -628.4 | |
| 0.00 | 2.22 | 0.00 | 1.35 | -21.93 | 76.73 | 28.57 | 229.46 | 0.5860 | -875.0 | -729.2 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -20.88 | 76.43 | 28.27 | 230.69 | 0.5742 | -891.0 | -722.1 | |
| 0.00 | 2.65 | 0.00 | 1.60 | -21.32 | 76.42 | 28.26 | 230.04 | 0.5776 | -898.0 | -789.5 | |
| 0.00 | 1.71 | 0.00 | 1.06 | -23.99 | 76.65 | 28.49 | 226.58 | 0.6023 | -736.0 | -632.7 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -20.94 | 75.51 | 27.35 | 229.75 | 0.5645 | -826.0 | -688.4 | |
| 0.00 | 1.79 | 0.00 | 1.07 | -21.35 | 75.24 | 27.08 | 228.89 | 0.5650 | -469.0 | -435.1 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -21.16 | 75.13 | 26.97 | 229.05 | 0.5622 | -771.0 | -642.8 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -21.09 | 74.98 | 26.82 | 229.00 | 0.5599 | -783.0 | -602.8 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -21.00 | 74.67 | 26.51 | 228.84 | 0.5558 | -736.0 | -574.1 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -23.46 | 75.11 | 26.95 | 225.81 | 0.5820 | -715.0 | -502.1 | |
| 0.00 | 2.05 | 0.00 | 1.21 | -20.65 | 74.50 | 26.34 | 229.18 | 0.5509 | -859.0 | -650.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
