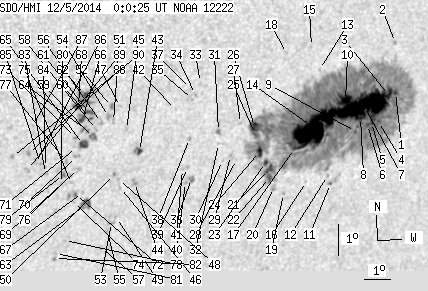

SDO HMI 2014-12-05 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 228.88 | 1233.28 | 153.20 | 823.92 | -19.72 | 85.23 | 37.63 | 239.03 | 0.6715 | 501.9 | 258.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.56 | 1060.75 | 1.78 | 717.15 | -18.76 | 88.54 | 40.93 | 242.23 | 0.7035 | 570.9 | 365.7 | |
| 0.00 | 1.54 | 0.00 | 1.05 | -17.20 | 88.11 | 40.50 | 244.13 | 0.6919 | -636.0 | -425.7 | |
| 6.23 | -1.00 | 4.31 | -1.00 | -18.82 | 88.27 | 40.66 | 242.02 | 0.7008 | 740.0 | 999999 | |
| 1.62 | -1.00 | 1.12 | -1.00 | -19.67 | 88.11 | 40.50 | 240.81 | 0.7029 | 295.7 | 999999 | |
| 1.02 | -1.00 | 0.71 | -1.00 | -19.70 | 87.83 | 40.22 | 240.63 | 0.7000 | 552.4 | 999999 | |
| 0.26 | -1.00 | 0.18 | -1.00 | -19.76 | 87.69 | 40.08 | 240.48 | 0.6987 | 670.7 | 999999 | |
| 74.16 | -1.00 | 50.77 | -1.00 | -19.19 | 87.39 | 39.79 | 241.08 | 0.6928 | 1103.6 | 999999 | |
| 2.99 | -1.00 | 2.05 | -1.00 | -19.53 | 87.33 | 39.72 | 240.59 | 0.6938 | 788.3 | 999999 | |
| 0.94 | -1.00 | 0.64 | -1.00 | -19.97 | 87.26 | 39.65 | 239.96 | 0.6951 | 422.6 | 999999 | |
| 10.75 | -1.00 | 7.26 | -1.00 | -19.00 | 86.57 | 38.96 | 240.91 | 0.6827 | 1204.2 | 999999 | |
| 0.43 | 5.29 | 0.29 | 3.65 | -21.62 | 86.75 | 39.14 | 237.52 | 0.6980 | -350.4 | 126.8 | |
| 0.00 | 1.62 | 0.00 | 1.11 | -21.36 | 86.54 | 38.93 | 237.74 | 0.6944 | -429.0 | -345.5 | |
| 0.00 | 1.37 | 0.00 | 0.90 | -18.02 | 85.27 | 37.67 | 241.56 | 0.6632 | 335.0 | 268.4 | |
| 81.07 | -1.00 | 54.32 | -1.00 | -19.87 | 85.57 | 37.96 | 239.18 | 0.6760 | 1305.1 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.78 | -17.30 | 84.79 | 37.18 | 242.31 | 0.6539 | -301.0 | -151.9 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -21.55 | 85.75 | 38.14 | 237.03 | 0.6869 | 98.0 | 94.8 | |
| 0.26 | -1.00 | 0.17 | -1.00 | -20.50 | 84.95 | 37.34 | 237.97 | 0.6725 | 832.7 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -17.51 | 83.87 | 36.26 | 241.49 | 0.6442 | 593.0 | 486.5 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -21.93 | 84.93 | 37.33 | 236.05 | 0.6804 | 589.0 | 540.5 | |
| 0.00 | 3.41 | 0.00 | 2.28 | -21.73 | 84.48 | 36.87 | 236.02 | 0.6744 | 199.0 | 25.8 | |
| 5.72 | -1.00 | 3.79 | -1.00 | -21.16 | 84.15 | 36.54 | 236.59 | 0.6675 | -308.2 | 999999 | |
| 3.16 | -1.00 | 2.10 | -1.00 | -21.41 | 84.22 | 36.61 | 236.29 | 0.6698 | -532.6 | 999999 | |
| 1.96 | -1.00 | 1.30 | -1.00 | -20.93 | 83.93 | 36.32 | 236.75 | 0.6638 | 673.7 | 999999 | |
| 4.35 | -1.00 | 2.86 | -1.00 | -20.58 | 83.59 | 35.99 | 237.02 | 0.6581 | 1017.5 | 999999 | |
| 2.90 | -1.00 | 1.89 | -1.00 | -20.04 | 83.29 | 35.69 | 237.57 | 0.6516 | 446.7 | 999999 | |
| 8.02 | -1.00 | 5.21 | -1.00 | -19.79 | 83.19 | 35.58 | 237.85 | 0.6489 | -407.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -19.69 | 82.63 | 35.02 | 237.63 | 0.6420 | -668.0 | -524.1 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -20.83 | 82.77 | 35.16 | 236.14 | 0.6504 | 675.0 | 640.0 | |
| 0.00 | 1.19 | 0.00 | 0.77 | -20.70 | 82.50 | 34.89 | 236.14 | 0.6467 | 756.0 | 622.0 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -20.86 | 82.23 | 34.62 | 235.75 | 0.6447 | 368.0 | 447.7 | |
| 0.77 | 2.82 | 0.49 | 1.80 | -19.94 | 81.85 | 34.24 | 236.76 | 0.6346 | -652.7 | -457.8 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -20.32 | 81.94 | 34.33 | 236.30 | 0.6381 | 595.0 | 519.9 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -18.40 | 80.81 | 33.20 | 238.27 | 0.6132 | -274.0 | -319.1 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -18.77 | 80.70 | 33.10 | 237.65 | 0.6143 | -651.0 | -563.3 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -18.93 | 80.63 | 33.02 | 237.37 | 0.6143 | -656.0 | -598.1 | |
| 0.00 | 3.84 | 0.00 | 2.46 | -21.43 | 81.19 | 33.58 | 234.24 | 0.6369 | 765.0 | 604.6 | |
| 0.00 | 0.34 | 0.00 | 0.21 | -18.58 | 80.48 | 32.87 | 237.77 | 0.6104 | -593.0 | -660.2 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -20.16 | 80.80 | 33.19 | 235.73 | 0.6242 | 755.0 | 607.2 | |
| 0.00 | 1.37 | 0.00 | 0.87 | -21.07 | 80.95 | 33.34 | 234.55 | 0.6319 | 656.0 | 542.2 | |
| 0.00 | 1.19 | 0.00 | 0.76 | -21.55 | 81.00 | 33.39 | 233.93 | 0.6356 | 530.0 | 525.2 | |
| 0.00 | 0.85 | 0.00 | 0.54 | -21.14 | 80.78 | 33.17 | 234.34 | 0.6304 | 637.0 | 546.1 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -19.24 | 80.06 | 32.45 | 236.51 | 0.6098 | -474.0 | -455.7 | |
| 2.47 | 4.95 | 1.54 | 3.08 | -20.56 | 79.02 | 31.42 | 233.83 | 0.6069 | -859.2 | -765.4 | |
| 0.00 | 2.39 | 0.00 | 1.50 | -21.54 | 79.07 | 31.46 | 232.48 | 0.6144 | 910.0 | 815.3 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -19.86 | 78.39 | 30.78 | 234.33 | 0.5947 | -701.0 | -618.9 | |
| 0.00 | 1.37 | 0.00 | 0.85 | -21.70 | 78.59 | 30.98 | 231.87 | 0.6102 | -341.0 | -263.0 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -19.13 | 78.02 | 30.41 | 235.11 | 0.5853 | -597.0 | -457.9 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -21.44 | 78.45 | 30.84 | 232.12 | 0.6069 | 776.0 | 571.3 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -22.66 | 78.67 | 31.06 | 230.62 | 0.6183 | -503.0 | -442.1 | |
| 0.00 | 1.28 | 0.00 | 0.79 | -21.28 | 78.27 | 30.66 | 232.19 | 0.6037 | 831.0 | 698.3 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -19.60 | 77.86 | 30.25 | 234.28 | 0.5868 | -462.0 | -401.9 | |
| 0.43 | 2.39 | 0.26 | 1.45 | -19.13 | 77.69 | 30.09 | 234.84 | 0.5815 | -790.6 | -666.2 | |
| 0.00 | 2.90 | 0.00 | 1.82 | -22.82 | 78.53 | 30.92 | 230.28 | 0.6180 | -661.0 | -620.5 | |
| 0.00 | 3.33 | 0.00 | 2.03 | -19.44 | 77.65 | 30.04 | 234.34 | 0.5832 | -821.0 | -680.5 | |
| 0.00 | 1.96 | 0.00 | 1.24 | -23.11 | 78.45 | 30.84 | 229.83 | 0.6194 | -569.0 | -442.3 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -19.63 | 77.43 | 29.82 | 233.88 | 0.5821 | -564.0 | -546.8 | |
| 0.00 | 1.37 | 0.00 | 0.86 | -23.62 | 78.32 | 30.71 | 229.03 | 0.6220 | -519.0 | -530.2 | |
| 0.00 | 1.54 | 0.00 | 0.93 | -19.85 | 77.30 | 29.69 | 233.44 | 0.5822 | -555.0 | -496.7 | |
| 0.00 | 5.12 | 0.00 | 3.12 | -20.10 | 77.24 | 29.63 | 233.03 | 0.5834 | -605.0 | -614.5 | |
| 0.68 | 13.06 | 0.41 | 7.88 | -19.50 | 77.01 | 29.40 | 233.72 | 0.5763 | -828.4 | -767.4 | |
| 2.22 | -60.00 | 1.34 | -60.00 | -19.32 | 76.94 | 29.33 | 233.94 | 0.5740 | -884.5 | 999999 | |
| 2.13 | 28.84 | 1.28 | 17.32 | -18.75 | 76.68 | 29.08 | 234.58 | 0.5669 | -890.6 | -632.1 | |
| 0.00 | 8.88 | 0.00 | 5.49 | -22.23 | 77.42 | 29.81 | 230.15 | 0.6017 | -693.0 | -569.5 | |
| 0.00 | 4.52 | 0.00 | 2.74 | -19.85 | 76.90 | 29.29 | 233.11 | 0.5776 | -877.0 | -807.0 | |
| 4.95 | 7.25 | 3.01 | 4.41 | -20.32 | 76.92 | 29.32 | 232.43 | 0.5815 | -873.8 | -659.3 | |
| 2.82 | -60.00 | 1.70 | -60.00 | -19.53 | 76.73 | 29.12 | 233.43 | 0.5733 | -982.6 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.84 | -21.85 | 77.22 | 29.61 | 230.51 | 0.5965 | -696.0 | -579.2 | |
| 2.99 | -62.00 | 1.79 | -62.00 | -19.12 | 76.51 | 28.90 | 233.85 | 0.5676 | -1010.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -21.08 | 76.90 | 29.29 | 231.32 | 0.5871 | -633.0 | -528.4 | |
| 0.00 | 2.65 | 0.00 | 1.61 | -20.70 | 76.75 | 29.14 | 231.73 | 0.5824 | -786.0 | -661.0 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -20.42 | 76.69 | 29.08 | 232.10 | 0.5795 | -416.0 | -425.8 | |
| 0.68 | 5.03 | 0.42 | 3.09 | -21.91 | 76.98 | 29.37 | 230.21 | 0.5944 | -770.1 | -620.7 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -20.10 | 76.59 | 28.98 | 232.47 | 0.5760 | -725.0 | -725.6 | |
| 0.00 | 1.19 | 0.00 | 0.74 | -22.17 | 76.96 | 29.35 | 229.84 | 0.5962 | -500.0 | -484.5 | |
| 0.00 | 0.68 | 0.00 | 0.42 | -21.56 | 76.75 | 29.14 | 230.51 | 0.5892 | -631.0 | -509.4 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -21.30 | 76.66 | 29.05 | 230.79 | 0.5861 | -774.0 | -615.2 | |
| 0.00 | 2.05 | 0.00 | 1.24 | -20.86 | 76.42 | 28.81 | 231.22 | 0.5800 | -879.0 | -657.0 | |
| 0.00 | 1.28 | 0.00 | 0.80 | -23.39 | 76.92 | 29.31 | 228.13 | 0.6056 | -705.0 | -550.1 | |
| 0.34 | 2.73 | 0.21 | 1.66 | -21.27 | 76.40 | 28.79 | 230.60 | 0.5830 | -886.5 | -775.7 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -21.56 | 76.39 | 28.78 | 230.19 | 0.5852 | -622.0 | -560.1 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -23.81 | 76.69 | 29.08 | 227.37 | 0.6067 | -688.0 | -658.9 | |
| 0.00 | 1.19 | 0.00 | 0.74 | -23.97 | 76.69 | 29.08 | 227.15 | 0.6081 | -721.0 | -656.9 | |
| 0.00 | 1.62 | 0.00 | 0.98 | -21.24 | 75.74 | 28.13 | 230.06 | 0.5755 | -304.0 | -398.4 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -21.05 | 75.70 | 28.09 | 230.29 | 0.5735 | -806.0 | -609.9 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -20.92 | 75.50 | 27.89 | 230.29 | 0.5702 | -819.0 | -751.5 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -20.92 | 75.32 | 27.71 | 230.12 | 0.5682 | -753.0 | -661.9 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -19.71 | 74.98 | 27.37 | 231.58 | 0.5546 | -565.0 | -458.7 | |
| 0.00 | 1.88 | 0.00 | 1.12 | -20.60 | 75.01 | 27.40 | 230.29 | 0.5621 | -853.0 | -772.9 | |
| 0.00 | 2.47 | 0.00 | 1.49 | -21.11 | 75.07 | 27.46 | 229.61 | 0.5670 | -660.0 | -643.6 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -20.69 | 74.45 | 26.85 | 229.62 | 0.5567 | -803.0 | -674.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
