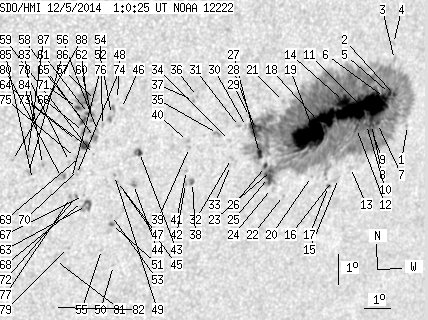

SDO HMI 2014-12-05 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 229.62 | 1211.61 | 155.21 | 815.89 | -19.71 | 85.30 | 38.24 | 239.42 | 0.6782 | 530.7 | 266.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.79 | -19.75 | 89.40 | 42.34 | 241.60 | 0.7230 | 4.0 | 37.3 | |
| 1.37 | 1047.78 | 0.96 | 713.48 | -18.77 | 88.54 | 41.48 | 242.49 | 0.7095 | 554.2 | 369.8 | |
| 0.00 | 1.96 | 0.00 | 1.36 | -17.67 | 88.22 | 41.17 | 243.80 | 0.7013 | 241.0 | 225.1 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -17.18 | 88.05 | 40.99 | 244.39 | 0.6973 | -480.0 | -426.6 | |
| 2.22 | -2.00 | 1.55 | -2.00 | -18.74 | 88.32 | 41.26 | 242.43 | 0.7070 | 670.0 | 999999 | |
| 4.78 | -2.00 | 3.33 | -2.00 | -18.86 | 88.15 | 41.09 | 242.18 | 0.7056 | 745.9 | 999999 | |
| 1.11 | -2.00 | 0.78 | -2.00 | -19.68 | 88.11 | 41.05 | 241.08 | 0.7088 | 229.7 | 999999 | |
| 2.22 | -2.00 | 1.55 | -2.00 | -19.71 | 87.87 | 40.81 | 240.92 | 0.7064 | 548.2 | 999999 | |
| 1.54 | -2.00 | 1.07 | -2.00 | -19.86 | 87.92 | 40.86 | 240.74 | 0.7076 | 470.1 | 999999 | |
| 2.48 | -2.00 | 1.72 | -2.00 | -19.70 | 87.66 | 40.60 | 240.82 | 0.7041 | 578.7 | 999999 | |
| 75.62 | -2.00 | 52.16 | -2.00 | -19.17 | 87.33 | 40.27 | 241.37 | 0.6980 | 1094.1 | 999999 | |
| 2.39 | -2.00 | 1.65 | -2.00 | -19.83 | 87.28 | 40.22 | 240.47 | 0.7006 | 554.5 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.79 | -21.06 | 87.43 | 40.37 | 238.92 | 0.7081 | 302.0 | 58.2 | |
| 10.16 | -2.00 | 6.91 | -2.00 | -18.97 | 86.50 | 39.44 | 241.20 | 0.6879 | 1191.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -21.41 | 87.04 | 39.98 | 238.26 | 0.7057 | 540.0 | 494.9 | |
| 0.00 | 2.05 | 0.00 | 1.42 | -21.47 | 86.81 | 39.75 | 238.06 | 0.7036 | 205.0 | 131.1 | |
| 0.68 | 1.62 | 0.47 | 1.13 | -21.66 | 86.71 | 39.65 | 237.75 | 0.7035 | -408.4 | -266.4 | |
| 2.13 | -2.00 | 1.45 | -2.00 | -19.79 | 85.96 | 38.91 | 239.82 | 0.6860 | 811.3 | 999999 | |
| 80.65 | -2.00 | 54.45 | -2.00 | -19.88 | 85.55 | 38.49 | 239.47 | 0.6818 | 1272.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -21.34 | 85.90 | 38.85 | 237.73 | 0.6933 | 383.0 | 281.7 | |
| 0.00 | 1.79 | 0.00 | 1.18 | -18.96 | 84.10 | 37.04 | 239.91 | 0.6608 | 349.0 | 340.4 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -21.94 | 84.95 | 37.90 | 236.39 | 0.6865 | 561.0 | 488.6 | |
| 2.82 | -2.00 | 1.88 | -2.00 | -21.14 | 84.23 | 37.17 | 237.01 | 0.6742 | -115.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.15 | -21.71 | 84.40 | 37.34 | 236.35 | 0.6793 | 167.0 | -23.2 | |
| 6.49 | -2.00 | 4.34 | -2.00 | -21.36 | 84.18 | 37.12 | 236.68 | 0.6749 | -486.4 | 999999 | |
| 1.71 | -2.00 | 1.14 | -2.00 | -21.01 | 83.95 | 36.89 | 237.02 | 0.6705 | 561.8 | 999999 | |
| 3.76 | -2.00 | 2.48 | -2.00 | -20.59 | 83.60 | 36.54 | 237.36 | 0.6642 | 1025.4 | 999999 | |
| 11.18 | -2.00 | 7.31 | -2.00 | -19.83 | 83.24 | 36.18 | 238.18 | 0.6558 | -207.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.05 | -19.42 | 82.90 | 35.84 | 238.54 | 0.6497 | -142.0 | -192.2 | |
| 0.00 | 2.05 | 0.00 | 1.33 | -19.74 | 82.86 | 35.80 | 238.08 | 0.6511 | -566.0 | -330.2 | |
| 0.00 | 1.37 | 0.00 | 0.89 | -19.73 | 82.59 | 35.53 | 237.91 | 0.6480 | -660.0 | -508.1 | |
| 0.00 | 1.88 | 0.00 | 1.23 | -20.75 | 82.54 | 35.49 | 236.49 | 0.6535 | 665.0 | 638.0 | |
| 0.00 | 1.02 | 0.00 | 0.67 | -20.97 | 82.57 | 35.51 | 236.20 | 0.6550 | 588.0 | 439.4 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -20.17 | 82.32 | 35.26 | 237.12 | 0.6475 | 315.0 | 308.6 | |
| 0.00 | 2.82 | 0.00 | 1.81 | -19.95 | 81.80 | 34.74 | 237.09 | 0.6403 | -574.0 | -467.6 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -18.78 | 80.76 | 33.70 | 238.06 | 0.6213 | -647.0 | -543.6 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -18.91 | 80.64 | 33.58 | 237.80 | 0.6207 | -648.0 | -604.6 | |
| 0.94 | 3.33 | 0.61 | 2.15 | -21.50 | 81.24 | 34.18 | 234.57 | 0.6438 | 622.5 | 592.1 | |
| 0.00 | 1.62 | 0.00 | 1.03 | -20.39 | 80.84 | 33.78 | 235.83 | 0.6322 | 656.0 | 547.4 | |
| 0.00 | 1.37 | 0.00 | 0.87 | -20.20 | 80.71 | 33.66 | 236.01 | 0.6296 | 672.0 | 584.9 | |
| 0.00 | 1.19 | 0.00 | 0.77 | -21.12 | 80.91 | 33.85 | 234.87 | 0.6377 | 578.0 | 541.4 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -21.53 | 80.98 | 33.92 | 234.35 | 0.6412 | 596.0 | 507.5 | |
| 2.22 | 5.89 | 1.39 | 3.68 | -20.53 | 78.99 | 31.93 | 234.27 | 0.6125 | -764.0 | -667.6 | |
| 0.00 | 2.99 | 0.00 | 1.88 | -21.55 | 79.01 | 31.95 | 232.86 | 0.6198 | 997.0 | 810.4 | |
| 0.00 | 1.71 | 0.00 | 1.07 | -21.64 | 78.59 | 31.53 | 232.39 | 0.6158 | -233.0 | -160.8 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -19.14 | 78.02 | 30.96 | 235.54 | 0.5917 | -531.0 | -374.2 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -21.45 | 78.39 | 31.33 | 232.51 | 0.6122 | 829.0 | 703.9 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -18.86 | 77.82 | 30.76 | 235.80 | 0.5874 | -371.0 | -453.7 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -21.26 | 78.23 | 31.17 | 232.65 | 0.6091 | 776.0 | 654.5 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -24.16 | 78.94 | 31.88 | 229.29 | 0.6380 | -478.0 | -369.1 | |
| 0.77 | 2.13 | 0.49 | 1.35 | -22.83 | 78.51 | 31.45 | 230.71 | 0.6236 | -739.2 | -619.3 | |
| 0.00 | 5.97 | 0.00 | 3.66 | -19.33 | 77.70 | 30.64 | 235.00 | 0.5893 | -519.0 | -640.7 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -22.54 | 78.43 | 31.37 | 231.04 | 0.6207 | -540.0 | -509.4 | |
| 0.00 | 1.71 | 0.00 | 1.04 | -19.67 | 77.44 | 30.38 | 234.29 | 0.5887 | -568.0 | -467.2 | |
| 0.00 | 1.19 | 0.00 | 0.76 | -23.63 | 78.34 | 31.28 | 229.50 | 0.6279 | -631.0 | -537.5 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -19.83 | 77.29 | 30.23 | 233.94 | 0.5882 | -604.0 | -522.6 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -18.89 | 77.03 | 29.97 | 235.12 | 0.5783 | -33.0 | -132.6 | |
| 0.00 | 4.86 | 0.00 | 2.98 | -20.05 | 77.23 | 30.17 | 233.56 | 0.5890 | -678.0 | -614.5 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -20.59 | 77.31 | 30.25 | 232.85 | 0.5939 | -452.0 | -361.4 | |
| 0.00 | 1.28 | 0.00 | 0.78 | -19.51 | 77.04 | 29.98 | 234.20 | 0.5830 | -862.0 | -795.5 | |
| 1.11 | 9.64 | 0.67 | 5.85 | -19.29 | 76.85 | 29.79 | 234.37 | 0.5792 | -954.5 | -809.6 | |
| 2.05 | 25.26 | 1.24 | 15.24 | -18.76 | 76.68 | 29.62 | 235.03 | 0.5733 | -848.0 | -645.5 | |
| 0.00 | 9.39 | 0.00 | 5.84 | -22.21 | 77.42 | 30.36 | 230.66 | 0.6074 | -651.0 | -551.8 | |
| 4.78 | 7.00 | 2.92 | 4.28 | -20.30 | 76.95 | 29.89 | 232.97 | 0.5878 | -860.1 | -652.7 | |
| 2.30 | -61.00 | 1.40 | -61.00 | -19.51 | 76.72 | 29.66 | 233.93 | 0.5792 | -986.7 | 999999 | |
| 0.60 | 5.29 | 0.36 | 3.22 | -19.86 | 76.79 | 29.73 | 233.48 | 0.5826 | -865.3 | -745.9 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -21.89 | 77.23 | 30.17 | 230.94 | 0.6029 | -506.0 | -503.3 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -22.08 | 77.24 | 30.18 | 230.68 | 0.6044 | -618.0 | -437.5 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -20.65 | 76.84 | 29.79 | 232.38 | 0.5892 | -720.0 | -608.7 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -21.06 | 76.86 | 29.80 | 231.80 | 0.5925 | -735.0 | -604.2 | |
| 1.54 | -62.00 | 0.93 | -62.00 | -19.10 | 76.42 | 29.36 | 234.29 | 0.5728 | -1046.9 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -21.92 | 76.98 | 29.92 | 230.69 | 0.6004 | -778.0 | -677.7 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -20.14 | 76.59 | 29.53 | 232.90 | 0.5825 | -889.0 | -698.6 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -21.22 | 76.82 | 29.76 | 231.54 | 0.5933 | -603.0 | -605.2 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -20.68 | 76.67 | 29.61 | 232.18 | 0.5874 | -725.0 | -680.2 | |
| 0.00 | 0.68 | 0.00 | 0.42 | -21.35 | 76.67 | 29.61 | 231.23 | 0.5925 | -608.0 | -562.8 | |
| 0.00 | 1.96 | 0.00 | 1.21 | -21.95 | 76.77 | 29.71 | 230.46 | 0.5983 | -898.0 | -714.9 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -20.81 | 76.48 | 29.42 | 231.84 | 0.5863 | -723.0 | -621.2 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -23.56 | 77.08 | 30.02 | 228.53 | 0.6143 | -620.0 | -617.1 | |
| 0.00 | 5.21 | 0.00 | 3.18 | -21.31 | 76.30 | 29.24 | 230.95 | 0.5882 | -550.0 | -684.6 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -23.98 | 76.70 | 29.64 | 227.65 | 0.6138 | -751.0 | -650.5 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -25.52 | 77.03 | 29.98 | 225.95 | 0.6297 | -599.0 | -407.2 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -20.90 | 75.52 | 28.46 | 230.86 | 0.5763 | -817.0 | -778.9 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -19.69 | 75.03 | 27.97 | 232.18 | 0.5612 | -745.0 | -642.8 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -21.37 | 75.26 | 28.20 | 229.93 | 0.5772 | -558.0 | -496.9 | |
| 0.00 | 2.65 | 0.00 | 1.60 | -21.15 | 75.07 | 28.01 | 230.08 | 0.5733 | -733.0 | -681.5 | |
| 0.00 | 2.56 | 0.00 | 1.54 | -20.61 | 74.92 | 27.86 | 230.73 | 0.5673 | -799.0 | -777.3 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -20.76 | 74.42 | 27.36 | 230.02 | 0.5630 | -759.0 | -609.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
