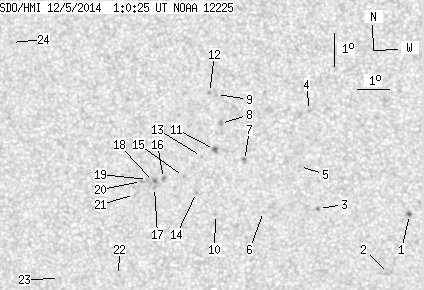

SDO HMI 2014-12-05 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 32.90 | 0.75 | 17.25 | -15.09 | 36.80 | -10.26 | 147.45 | 0.3224 | -257.2 | -239.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 01:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 1.62 | 0.31 | 0.84 | -16.30 | 42.54 | -4.52 | 165.26 | 0.2984 | 1034.7 | 907.3 | |
| 0.00 | 2.65 | 0.00 | 1.39 | -18.13 | 41.84 | -5.22 | 164.78 | 0.3307 | 614.0 | 612.2 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -16.11 | 39.73 | -7.33 | 156.68 | 0.3108 | 930.0 | 862.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -13.11 | 39.56 | -7.50 | 151.46 | 0.2672 | 885.0 | 693.1 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -14.82 | 39.19 | -7.86 | 153.26 | 0.2953 | 883.0 | 650.0 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.20 | 38.02 | -9.04 | 152.16 | 0.3245 | 608.0 | 432.4 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -14.64 | 37.50 | -9.56 | 148.23 | 0.3064 | -303.0 | -234.4 | |
| 0.00 | 2.30 | 0.00 | 1.19 | -13.51 | 36.81 | -10.25 | 144.25 | 0.2974 | -779.0 | -747.8 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -12.63 | 36.73 | -10.33 | 142.16 | 0.2866 | -733.0 | -642.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -16.30 | 36.52 | -10.54 | 148.55 | 0.3381 | 825.0 | 645.8 | |
| 0.85 | 2.82 | 0.44 | 1.47 | -14.30 | 36.59 | -10.47 | 145.23 | 0.3102 | -1166.6 | -888.7 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -12.57 | 36.51 | -10.54 | 141.47 | 0.2880 | -738.0 | -585.7 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -14.52 | 36.18 | -10.88 | 144.61 | 0.3170 | -685.0 | -570.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -15.62 | 35.96 | -11.10 | 146.09 | 0.3338 | 802.0 | 642.7 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -15.13 | 35.58 | -11.48 | 144.33 | 0.3309 | -890.0 | -641.3 | |
| 0.00 | 1.79 | 0.00 | 0.94 | -15.19 | 34.95 | -12.11 | 143.00 | 0.3378 | -1132.0 | -897.9 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -15.47 | 34.65 | -12.41 | 142.85 | 0.3443 | -718.0 | -619.4 | |
| 0.00 | 2.22 | 0.00 | 1.17 | -15.28 | 34.63 | -12.42 | 142.46 | 0.3422 | -1118.0 | -926.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -15.22 | 34.45 | -12.61 | 141.95 | 0.3433 | -741.0 | -722.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -15.28 | 34.26 | -12.80 | 141.65 | 0.3460 | -770.0 | -682.0 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -15.68 | 34.01 | -13.05 | 141.86 | 0.3535 | -671.0 | -613.1 | |
| 0.00 | 0.68 | 0.00 | 0.37 | -18.19 | 33.32 | -13.74 | 144.69 | 0.3921 | -731.0 | -604.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -18.29 | 31.41 | -15.65 | 141.34 | 0.4117 | -818.0 | -637.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -11.06 | 30.44 | -16.62 | 125.26 | 0.3452 | -761.0 | -603.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
