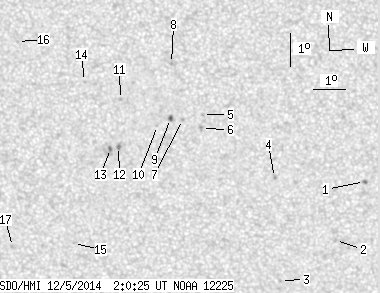

SDO HMI 2014-12-05 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.71 | 28.08 | 0.89 | 14.71 | -15.37 | 36.41 | -10.10 | 148.29 | 0.3246 | -443.1 | -378.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 02:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.88 | -16.25 | 42.52 | -3.99 | 166.87 | 0.2954 | 1128.0 | 947.5 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -18.08 | 41.58 | -4.93 | 165.52 | 0.3286 | 781.0 | 589.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -19.33 | 39.81 | -6.70 | 161.92 | 0.3565 | 531.0 | 438.2 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -16.12 | 39.74 | -6.77 | 158.29 | 0.3073 | 989.0 | 845.9 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -14.19 | 37.59 | -8.92 | 149.17 | 0.2945 | -870.0 | -713.3 | |
| 0.00 | 1.96 | 0.00 | 1.02 | -14.62 | 37.55 | -8.96 | 149.79 | 0.3010 | -561.0 | -398.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -14.35 | 36.97 | -9.54 | 147.73 | 0.3021 | -847.0 | -628.0 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -12.64 | 36.70 | -9.81 | 143.60 | 0.2813 | -961.0 | -786.5 | |
| 1.11 | 2.48 | 0.58 | 1.29 | -14.31 | 36.60 | -9.91 | 146.69 | 0.3050 | -1054.1 | -868.5 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -14.53 | 36.19 | -10.32 | 146.02 | 0.3118 | -592.0 | -508.6 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -13.74 | 35.08 | -11.43 | 141.72 | 0.3122 | -840.0 | -615.6 | |
| 0.00 | 2.56 | 0.00 | 1.34 | -15.17 | 34.94 | -11.57 | 144.18 | 0.3322 | -1137.0 | -799.8 | |
| 0.60 | 6.57 | 0.31 | 3.46 | -15.23 | 34.69 | -11.82 | 143.70 | 0.3355 | -1073.4 | -747.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -13.19 | 33.99 | -12.52 | 138.03 | 0.3170 | -637.0 | -545.5 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -18.17 | 33.32 | -13.19 | 145.72 | 0.3867 | -825.0 | -654.4 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -11.98 | 31.97 | -14.54 | 131.07 | 0.3272 | -829.0 | -641.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -18.27 | 31.35 | -15.16 | 142.16 | 0.4066 | -797.0 | -678.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
