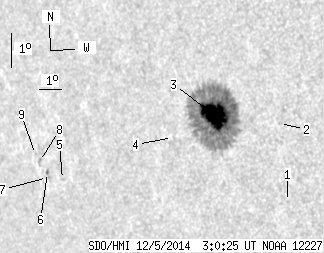

SDO HMI 2014-12-05 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.86 | 259.41 | 28.30 | 184.77 | -3.78 | 0.24 | -45.72 | 95.65 | 0.7200 | 824.2 | 254.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 03:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.41 | -6.27 | 3.30 | -42.66 | 99.61 | 0.6856 | 514.0 | 406.1 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -3.95 | 3.17 | -42.79 | 96.21 | 0.6841 | 459.0 | 437.1 | |
| 39.35 | 250.27 | 27.87 | 177.40 | -3.72 | 0.49 | -45.47 | 95.59 | 0.7171 | 1124.6 | 278.5 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -4.39 | 358.63 | -47.33 | 96.30 | 0.7399 | 481.0 | 355.3 | |
| 0.00 | 1.79 | 0.00 | 1.47 | -5.66 | 353.39 | -52.57 | 97.40 | 0.7991 | -202.0 | -149.1 | |
| 0.51 | 1.45 | 0.43 | 1.21 | -5.45 | 352.68 | -53.28 | 97.07 | 0.8064 | -620.5 | -503.0 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -5.60 | 352.66 | -53.30 | 97.25 | 0.8067 | -668.0 | -642.1 | |
| 0.00 | 2.48 | 0.00 | 2.08 | -5.13 | 352.32 | -53.64 | 96.64 | 0.8098 | -662.0 | -506.9 | |
| 0.00 | 0.85 | 0.00 | 0.72 | -4.92 | 352.14 | -53.82 | 96.36 | 0.8114 | -458.0 | -391.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
