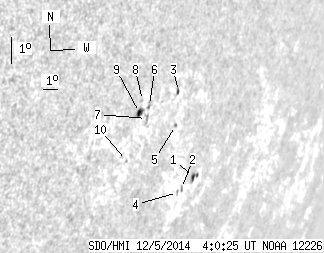

SDO HMI 2014-12-05 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.79 | 22.37 | 5.61 | 26.23 | -19.04 | 108.69 | 63.27 | 248.70 | 0.9072 | 68.6 | 96.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 4.10 | 2.04 | 5.47 | -20.39 | 111.86 | 66.45 | 247.79 | 0.9298 | 427.1 | 245.0 | |
| 0.00 | 1.37 | 0.00 | 1.78 | -20.73 | 111.21 | 65.80 | 247.32 | 0.9262 | 373.0 | 287.6 | |
| 0.77 | 2.30 | 0.89 | 2.68 | -17.67 | 108.73 | 63.32 | 250.21 | 0.9066 | 362.3 | 314.6 | |
| 0.00 | 1.02 | 0.00 | 1.32 | -20.86 | 111.01 | 65.59 | 247.15 | 0.9251 | 575.0 | 489.5 | |
| 0.00 | 1.20 | 0.00 | 1.42 | -18.73 | 109.23 | 63.81 | 249.14 | 0.9112 | 509.0 | 399.2 | |
| 0.00 | 2.39 | 0.00 | 2.63 | -18.09 | 107.03 | 61.61 | 249.45 | 0.8950 | 212.0 | 116.4 | |
| 0.00 | 3.67 | 0.00 | 4.06 | -18.50 | 107.08 | 61.66 | 249.02 | 0.8959 | -179.0 | -94.9 | |
| 0.00 | 0.60 | 0.00 | 0.65 | -17.93 | 106.47 | 61.06 | 249.53 | 0.8907 | -341.0 | -328.7 | |
| 2.48 | 4.87 | 2.68 | 5.28 | -18.30 | 106.50 | 61.09 | 249.12 | 0.8914 | -480.2 | -252.2 | |
| 0.00 | 0.85 | 0.00 | 0.94 | -19.81 | 106.60 | 61.19 | 247.48 | 0.8943 | -191.0 | -205.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
