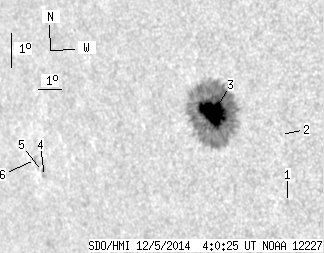

SDO HMI 2014-12-05 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.21 | 243.54 | 28.18 | 171.37 | -3.77 | 0.37 | -45.04 | 95.68 | 0.7117 | 938.5 | 276.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.13 | 0.00 | 1.43 | -6.36 | 3.35 | -42.06 | 99.85 | 0.6782 | 62.0 | 147.8 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -4.34 | 3.25 | -42.17 | 96.86 | 0.6766 | 636.0 | 506.4 | |
| 40.21 | 235.69 | 28.18 | 165.31 | -3.70 | 0.54 | -44.87 | 95.61 | 0.7098 | 1147.8 | 302.2 | |
| 0.00 | 1.62 | 0.00 | 1.33 | -5.63 | 352.71 | -52.71 | 97.35 | 0.8006 | -666.0 | -542.8 | |
| 0.00 | 1.45 | 0.00 | 1.20 | -5.48 | 352.63 | -52.79 | 97.15 | 0.8013 | -743.0 | -602.2 | |
| 0.00 | 2.05 | 0.00 | 1.70 | -5.13 | 352.32 | -53.09 | 96.68 | 0.8041 | -497.0 | -496.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
