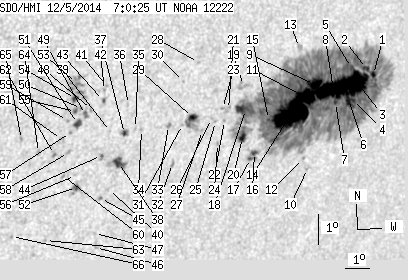

SDO HMI 2014-12-05 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 225.96 | 1109.44 | 159.95 | 784.48 | -19.57 | 85.36 | 41.58 | 241.41 | 0.7137 | 692.3 | 274.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 07:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.30 | 962.88 | 1.70 | 688.87 | -18.74 | 88.52 | 44.74 | 243.98 | 0.7441 | 393.5 | 352.6 | |
| 3.41 | -1.00 | 2.50 | -1.00 | -18.55 | 88.15 | 44.37 | 244.08 | 0.7395 | 627.3 | 999999 | |
| 32.10 | -1.00 | 23.49 | -1.00 | -18.98 | 87.90 | 44.12 | 243.41 | 0.7385 | 985.8 | 999999 | |
| 1.54 | -1.00 | 1.13 | -1.00 | -19.55 | 87.87 | 44.09 | 242.68 | 0.7404 | 476.9 | 999999 | |
| 2.56 | -1.00 | 1.86 | -1.00 | -18.51 | 87.49 | 43.71 | 243.85 | 0.7323 | 709.9 | 999999 | |
| 5.04 | -1.00 | 3.68 | -1.00 | -19.52 | 87.69 | 43.91 | 242.64 | 0.7384 | 647.9 | 999999 | |
| 1.28 | -1.00 | 0.93 | -1.00 | -19.61 | 87.15 | 43.37 | 242.29 | 0.7331 | 657.5 | 999999 | |
| 41.23 | -1.00 | 29.73 | -1.00 | -19.20 | 86.93 | 43.15 | 242.72 | 0.7291 | 1218.7 | 999999 | |
| 12.46 | -1.00 | 8.85 | -1.00 | -19.03 | 86.07 | 42.29 | 242.55 | 0.7191 | 1255.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.81 | -21.69 | 86.67 | 42.90 | 239.41 | 0.7370 | -364.0 | -320.4 | |
| 23.05 | -1.00 | 16.34 | -1.00 | -19.44 | 85.81 | 42.04 | 241.90 | 0.7181 | 1423.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.80 | -21.37 | 86.38 | 42.60 | 239.68 | 0.7326 | -361.0 | -223.9 | |
| 0.00 | 3.24 | 0.00 | 2.25 | -17.87 | 85.09 | 41.31 | 243.64 | 0.7036 | 397.0 | 317.8 | |
| 56.00 | -1.00 | 39.59 | -1.00 | -19.97 | 85.35 | 41.57 | 240.99 | 0.7155 | 1352.6 | 999999 | |
| 0.26 | -1.00 | 0.18 | -1.00 | -20.13 | 84.48 | 40.70 | 240.35 | 0.7068 | 1302.7 | 999999 | |
| 1.88 | 8.02 | 1.32 | 5.62 | -21.17 | 84.23 | 40.45 | 238.86 | 0.7092 | -129.3 | -27.7 | |
| 1.11 | -16.00 | 0.78 | -16.00 | -21.36 | 84.13 | 40.35 | 238.56 | 0.7091 | -548.5 | 999999 | |
| 16.65 | -1.00 | 11.42 | -1.00 | -19.80 | 83.43 | 39.65 | 240.24 | 0.6939 | 340.2 | 999999 | |
| 0.00 | 5.98 | 0.00 | 4.06 | -19.05 | 83.13 | 39.35 | 241.10 | 0.6869 | 186.0 | 160.0 | |
| 4.35 | -1.00 | 3.01 | -1.00 | -20.69 | 83.58 | 39.80 | 239.15 | 0.6999 | 938.6 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.91 | -19.80 | 82.74 | 38.96 | 239.88 | 0.6863 | 472.0 | 122.9 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -20.15 | 82.68 | 38.90 | 239.38 | 0.6874 | 570.0 | 502.1 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -19.77 | 82.48 | 38.71 | 239.78 | 0.6833 | -497.0 | -406.7 | |
| 0.00 | 1.28 | 0.00 | 0.87 | -20.87 | 82.61 | 38.83 | 238.38 | 0.6904 | 686.0 | 579.0 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -20.18 | 82.32 | 38.54 | 239.14 | 0.6836 | 837.0 | 691.7 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -20.08 | 82.13 | 38.35 | 239.17 | 0.6811 | 323.0 | 272.1 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -20.46 | 81.88 | 38.10 | 238.52 | 0.6803 | -28.0 | 110.1 | |
| 0.00 | 1.02 | 0.00 | 0.67 | -18.32 | 81.14 | 37.36 | 241.03 | 0.6608 | -397.0 | -338.3 | |
| 4.27 | 15.96 | 2.85 | 10.67 | -20.04 | 81.36 | 37.58 | 238.78 | 0.6724 | -523.2 | 52.5 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -18.91 | 80.70 | 36.92 | 239.95 | 0.6589 | -643.0 | -506.4 | |
| 0.00 | 1.54 | 0.00 | 1.02 | -20.26 | 81.03 | 37.25 | 238.28 | 0.6698 | -600.0 | -406.7 | |
| 0.00 | 2.73 | 0.00 | 1.83 | -21.50 | 80.99 | 37.21 | 236.59 | 0.6763 | 550.0 | 460.3 | |
| 0.00 | 2.30 | 0.00 | 1.52 | -20.29 | 80.48 | 36.70 | 237.92 | 0.6639 | 658.0 | 600.1 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -20.41 | 79.46 | 35.68 | 237.11 | 0.6532 | -717.0 | -531.4 | |
| 0.00 | 1.20 | 0.00 | 0.78 | -20.38 | 79.21 | 35.43 | 237.00 | 0.6504 | -494.0 | -431.1 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -19.62 | 78.75 | 34.97 | 237.76 | 0.6406 | -623.0 | -520.1 | |
| 1.71 | 4.95 | 1.11 | 3.21 | -20.54 | 78.83 | 35.05 | 236.53 | 0.6470 | -823.0 | -562.2 | |
| 6.32 | 14.17 | 4.12 | 9.24 | -21.46 | 78.84 | 35.06 | 235.28 | 0.6528 | 611.3 | 412.0 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -20.47 | 78.27 | 34.49 | 236.25 | 0.6404 | -498.0 | -408.4 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -22.32 | 78.70 | 34.92 | 234.02 | 0.6567 | -481.0 | -359.7 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -19.02 | 77.77 | 33.99 | 237.96 | 0.6257 | -657.0 | -565.3 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -19.17 | 77.73 | 33.95 | 237.71 | 0.6262 | -734.0 | -630.3 | |
| 0.51 | 2.13 | 0.33 | 1.36 | -19.49 | 77.76 | 33.98 | 237.29 | 0.6286 | -699.3 | -603.5 | |
| 0.34 | 2.13 | 0.22 | 1.38 | -21.23 | 78.13 | 34.35 | 235.10 | 0.6435 | 762.5 | 653.9 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -22.60 | 78.47 | 34.69 | 233.48 | 0.6561 | -671.0 | -524.0 | |
| 0.00 | 0.85 | 0.00 | 0.57 | -24.19 | 78.75 | 34.97 | 231.60 | 0.6694 | -618.0 | -545.5 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -23.73 | 78.57 | 34.79 | 232.06 | 0.6646 | -510.0 | -417.6 | |
| 0.00 | 1.88 | 0.00 | 1.19 | -19.77 | 77.38 | 33.60 | 236.62 | 0.6259 | -433.0 | -322.8 | |
| 0.00 | 3.84 | 0.00 | 2.43 | -19.93 | 77.19 | 33.41 | 236.27 | 0.6247 | -711.0 | -630.5 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -19.74 | 76.99 | 33.21 | 236.40 | 0.6213 | -851.0 | -729.5 | |
| 3.07 | 5.55 | 1.94 | 3.51 | -20.21 | 76.95 | 33.17 | 235.70 | 0.6239 | -866.5 | -661.8 | |
| 1.71 | 4.35 | 1.10 | 2.81 | -22.25 | 77.44 | 33.66 | 233.23 | 0.6427 | -682.1 | -525.5 | |
| 0.00 | 14.60 | 0.00 | 9.12 | -18.95 | 76.63 | 32.85 | 237.28 | 0.6120 | -905.0 | -727.4 | |
| 2.13 | 9.82 | 1.34 | 6.16 | -19.42 | 76.69 | 32.91 | 236.64 | 0.6158 | -992.1 | -763.2 | |
| 0.68 | 1.88 | 0.43 | 1.18 | -19.83 | 76.79 | 33.01 | 236.12 | 0.6196 | -923.1 | -824.3 | |
| 0.00 | 0.94 | 0.00 | 0.60 | -21.86 | 77.30 | 33.52 | 233.65 | 0.6386 | -601.0 | -384.3 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -20.49 | 76.76 | 32.98 | 235.16 | 0.6235 | -735.0 | -666.5 | |
| 0.00 | 2.13 | 0.00 | 1.36 | -21.13 | 76.84 | 33.06 | 234.33 | 0.6287 | -725.0 | -561.2 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -20.11 | 76.55 | 32.78 | 235.55 | 0.6187 | -612.0 | -646.2 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -21.89 | 76.85 | 33.07 | 233.28 | 0.6339 | -804.0 | -601.3 | |
| 0.00 | 2.65 | 0.00 | 1.67 | -20.71 | 76.47 | 32.69 | 234.64 | 0.6218 | -801.0 | -640.4 | |
| 0.00 | 2.05 | 0.00 | 1.29 | -21.19 | 76.33 | 32.55 | 233.86 | 0.6234 | -890.0 | -786.6 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -23.95 | 76.72 | 32.94 | 230.43 | 0.6470 | -573.0 | -393.3 | |
| 0.00 | 2.56 | 0.00 | 1.61 | -21.12 | 75.71 | 31.93 | 233.49 | 0.6161 | -823.0 | -638.6 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -20.70 | 74.98 | 31.20 | 233.51 | 0.6050 | -875.0 | -788.1 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -23.81 | 75.38 | 31.60 | 229.56 | 0.6322 | -646.0 | -527.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
