SDO HMI 2014-12-05 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.41 | 24.33 | 7.73 | 30.78 | -18.72 | 108.07 | 65.38 | 249.41 | 0.9208 | -41.0 | 200.0 | |
|
previous
or next observation for the same group /

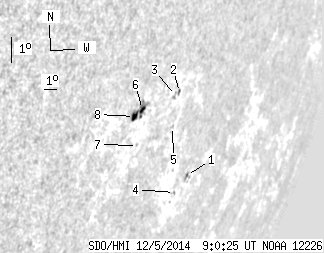

back to the solar disc SDO HMI 2014-12-05 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 2.82 | 0.64 | 4.24 | -20.36 | 111.92 | 69.23 | 248.24 | 0.9453 | 391.8 | 274.3 | |
| 0.00 | 1.71 | 0.00 | 2.23 | -17.74 | 109.09 | 66.40 | 250.63 | 0.9269 | 223.0 | 194.6 | |
| 0.00 | 2.56 | 0.00 | 3.31 | -17.83 | 108.85 | 66.16 | 250.49 | 0.9254 | 547.0 | 484.1 | |
| 0.00 | 1.02 | 0.00 | 1.50 | -20.89 | 111.38 | 68.69 | 247.60 | 0.9429 | 299.0 | 238.6 | |
| 0.00 | 1.28 | 0.00 | 1.70 | -18.80 | 109.35 | 66.67 | 249.53 | 0.9294 | 465.0 | 397.2 | |
| 2.48 | 14.17 | 2.96 | 16.86 | -18.25 | 106.68 | 64.00 | 249.71 | 0.9118 | -17.2 | 61.4 | |
| 0.00 | 0.77 | 0.00 | 0.94 | -19.38 | 107.12 | 64.43 | 248.56 | 0.9160 | -90.0 | -50.2 | |
| 3.50 | -6.00 | 4.13 | -6.00 | -18.46 | 106.26 | 63.57 | 249.40 | 0.9092 | -524.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
