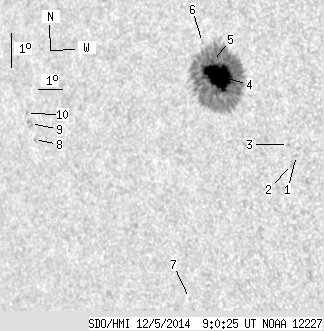

SDO HMI 2014-12-05 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.32 | 262.82 | 27.64 | 176.58 | -3.77 | 0.43 | -42.26 | 95.97 | 0.6769 | 902.4 | 277.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 09:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.66 | -6.02 | 3.49 | -39.20 | 99.88 | 0.6403 | 728.0 | 569.8 | |
| 0.00 | 2.22 | 0.00 | 1.43 | -6.29 | 3.28 | -39.41 | 100.25 | 0.6436 | 617.0 | 498.7 | |
| 0.00 | 1.28 | 0.00 | 0.83 | -5.69 | 3.21 | -39.48 | 99.32 | 0.6434 | 619.0 | 423.3 | |
| 41.06 | 250.54 | 27.47 | 167.78 | -3.68 | 0.61 | -42.08 | 95.86 | 0.6746 | 1130.9 | 297.0 | |
| 0.26 | -4.00 | 0.17 | -4.00 | -3.24 | 0.40 | -42.29 | 95.18 | 0.6770 | 762.7 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -2.68 | 0.02 | -42.67 | 94.32 | 0.6813 | 481.0 | 425.3 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -10.31 | 358.64 | -44.04 | 105.00 | 0.7105 | 385.0 | 282.6 | |
| 0.00 | 0.68 | 0.00 | 0.53 | -5.58 | 352.53 | -50.15 | 97.54 | 0.7731 | -548.0 | -493.8 | |
| 0.00 | 3.84 | 0.00 | 2.99 | -5.11 | 352.40 | -50.29 | 96.91 | 0.7741 | -613.0 | -509.4 | |
| 0.00 | 1.28 | 0.00 | 1.00 | -4.81 | 352.25 | -50.44 | 96.51 | 0.7756 | -562.0 | -437.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
