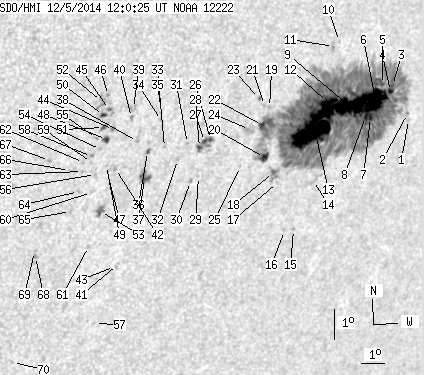

SDO HMI 2014-12-05 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 184.33 | 1058.04 | 136.74 | 783.48 | -19.58 | 85.56 | 44.51 | 242.74 | 0.7446 | 594.7 | 257.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 1.23 | -19.59 | 89.69 | 48.64 | 244.40 | 0.7864 | -492.0 | -438.0 | |
| 0.00 | 1.11 | 0.00 | 0.88 | -19.40 | 89.56 | 48.51 | 244.58 | 0.7846 | -645.0 | -620.2 | |
| 2.30 | 920.13 | 1.79 | 689.05 | -18.51 | 88.52 | 47.47 | 245.31 | 0.7714 | 172.6 | 331.2 | |
| 2.39 | -3.00 | 1.85 | -3.00 | -18.70 | 88.50 | 47.45 | 245.07 | 0.7718 | 159.8 | 999999 | |
| 1.19 | -3.00 | 0.92 | -3.00 | -18.48 | 88.05 | 47.00 | 245.18 | 0.7665 | 526.7 | 999999 | |
| 33.03 | -3.00 | 25.36 | -3.00 | -18.95 | 87.90 | 46.85 | 244.54 | 0.7665 | 879.8 | 999999 | |
| 1.54 | -3.00 | 1.18 | -3.00 | -19.51 | 87.88 | 46.83 | 243.83 | 0.7682 | 432.1 | 999999 | |
| 1.62 | -3.00 | 1.24 | -3.00 | -19.48 | 87.64 | 46.59 | 243.78 | 0.7657 | 632.4 | 999999 | |
| 35.33 | -3.00 | 26.62 | -3.00 | -19.16 | 86.79 | 45.74 | 243.86 | 0.7560 | 1134.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -17.13 | 85.68 | 44.63 | 246.03 | 0.7370 | -277.0 | -271.0 | |
| 0.00 | 4.01 | 0.00 | 2.92 | -17.28 | 85.46 | 44.41 | 245.75 | 0.7353 | -493.0 | -81.7 | |
| 8.02 | -3.00 | 5.93 | -3.00 | -19.03 | 85.77 | 44.72 | 243.62 | 0.7448 | 1291.4 | 999999 | |
| 73.14 | -3.00 | 54.07 | -3.00 | -19.84 | 85.48 | 44.42 | 242.46 | 0.7449 | 1274.6 | 999999 | |
| 0.00 | 7.77 | 0.00 | 5.86 | -21.49 | 86.05 | 45.00 | 240.63 | 0.7573 | 203.0 | 99.7 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -23.06 | 85.78 | 44.73 | 238.58 | 0.7611 | 497.0 | 452.4 | |
| 0.00 | 0.85 | 0.00 | 0.64 | -23.09 | 85.39 | 44.34 | 238.37 | 0.7574 | 508.0 | 418.5 | |
| 0.00 | 1.28 | 0.00 | 0.94 | -21.55 | 84.47 | 43.42 | 239.86 | 0.7416 | 326.0 | 256.7 | |
| 1.37 | 9.13 | 1.00 | 6.68 | -21.23 | 84.17 | 43.12 | 240.12 | 0.7372 | -95.2 | -2.2 | |
| 0.00 | 1.62 | 0.00 | 1.15 | -19.17 | 83.30 | 42.25 | 242.37 | 0.7192 | 294.0 | 251.1 | |
| 4.95 | -3.00 | 3.57 | -3.00 | -20.75 | 83.61 | 42.56 | 240.47 | 0.7293 | 781.3 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -19.11 | 83.07 | 42.02 | 242.35 | 0.7164 | 758.0 | 517.5 | |
| 3.84 | -3.00 | 2.73 | -3.00 | -19.74 | 83.19 | 42.14 | 241.58 | 0.7204 | -216.2 | 999999 | |
| 0.34 | 1.54 | 0.24 | 1.08 | -18.89 | 82.79 | 41.74 | 242.51 | 0.7125 | -307.8 | -197.6 | |
| 0.00 | 8.62 | 0.00 | 6.09 | -19.86 | 82.68 | 41.63 | 241.18 | 0.7155 | 309.0 | 233.0 | |
| 0.00 | 0.68 | 0.00 | 0.49 | -21.03 | 82.68 | 41.63 | 239.66 | 0.7209 | 482.0 | 443.8 | |
| 1.37 | 14.51 | 0.94 | 10.02 | -20.17 | 81.15 | 40.10 | 240.01 | 0.7004 | -517.4 | -331.1 | |
| 1.79 | -26.00 | 1.24 | -26.00 | -20.23 | 80.92 | 39.87 | 239.81 | 0.6982 | -724.6 | 999999 | |
| 1.45 | -26.00 | 1.00 | -26.00 | -20.42 | 80.77 | 39.72 | 239.48 | 0.6976 | -700.2 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -21.34 | 81.02 | 39.97 | 238.41 | 0.7048 | 521.0 | 456.0 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -21.49 | 80.74 | 39.69 | 238.05 | 0.7027 | 574.0 | 507.5 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -20.29 | 80.24 | 39.19 | 239.37 | 0.6912 | 462.0 | 355.2 | |
| 0.00 | 1.79 | 0.00 | 1.22 | -20.79 | 79.99 | 38.94 | 238.56 | 0.6910 | 191.0 | 269.4 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -20.41 | 79.34 | 38.29 | 238.71 | 0.6820 | -742.0 | -557.6 | |
| 0.00 | 1.28 | 0.00 | 0.86 | -19.55 | 78.98 | 37.93 | 239.66 | 0.6735 | -638.0 | -612.5 | |
| 0.00 | 0.68 | 0.00 | 0.46 | -19.30 | 78.91 | 37.86 | 239.97 | 0.6714 | -643.0 | -533.9 | |
| 0.85 | 1.96 | 0.57 | 1.32 | -20.53 | 78.70 | 37.65 | 238.17 | 0.6756 | -685.0 | -616.2 | |
| 4.35 | 10.50 | 2.94 | 7.08 | -21.39 | 78.83 | 37.78 | 237.11 | 0.6817 | 591.5 | 544.9 | |
| 0.00 | 1.19 | 0.00 | 0.79 | -20.21 | 78.21 | 37.16 | 238.32 | 0.6684 | -741.0 | -607.6 | |
| 0.00 | 3.75 | 0.00 | 2.46 | -19.17 | 77.77 | 36.72 | 239.49 | 0.6579 | -589.0 | -580.7 | |
| 0.00 | 1.62 | 0.00 | 1.07 | -19.45 | 77.77 | 36.72 | 239.10 | 0.6593 | -709.0 | -615.8 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -24.15 | 78.63 | 37.58 | 233.40 | 0.6956 | -529.0 | -446.4 | |
| 0.00 | 1.71 | 0.00 | 1.13 | -21.06 | 77.58 | 36.53 | 236.78 | 0.6663 | -504.0 | -450.3 | |
| 0.00 | 0.51 | 0.00 | 0.35 | -24.21 | 78.53 | 37.48 | 233.25 | 0.6949 | -131.0 | -278.3 | |
| 0.00 | 2.22 | 0.00 | 1.45 | -19.83 | 77.16 | 36.11 | 238.21 | 0.6546 | -753.0 | -599.2 | |
| 0.43 | 3.93 | 0.28 | 2.55 | -19.20 | 76.85 | 35.79 | 238.89 | 0.6474 | -762.2 | -648.0 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -18.76 | 76.70 | 35.65 | 239.42 | 0.6433 | -827.0 | -674.5 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -21.19 | 77.30 | 36.25 | 236.44 | 0.6640 | -630.0 | -486.7 | |
| 2.30 | 4.01 | 1.50 | 2.62 | -20.14 | 76.97 | 35.92 | 237.66 | 0.6543 | -840.3 | -685.7 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -20.97 | 77.20 | 36.15 | 236.67 | 0.6616 | -409.0 | -454.1 | |
| 1.62 | 2.82 | 1.05 | 1.82 | -19.38 | 76.66 | 35.61 | 238.52 | 0.6464 | -950.4 | -825.4 | |
| 1.11 | 3.93 | 0.72 | 2.55 | -19.76 | 76.76 | 35.71 | 238.05 | 0.6497 | -799.9 | -626.6 | |
| 0.00 | 8.28 | 0.00 | 5.33 | -18.94 | 76.47 | 35.42 | 239.02 | 0.6418 | -639.0 | -611.5 | |
| 0.00 | 6.74 | 0.00 | 4.50 | -22.43 | 77.39 | 36.34 | 234.83 | 0.6724 | -684.0 | -523.2 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -20.46 | 76.82 | 35.77 | 237.13 | 0.6544 | -789.0 | -600.3 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -20.11 | 76.58 | 35.52 | 237.45 | 0.6496 | -667.0 | -631.2 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -21.25 | 76.85 | 35.80 | 236.06 | 0.6594 | -556.0 | -485.5 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -26.08 | 78.38 | 37.33 | 230.83 | 0.7049 | -506.0 | -374.3 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -20.68 | 76.53 | 35.48 | 236.64 | 0.6525 | -929.0 | -790.7 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -20.87 | 76.58 | 35.53 | 236.41 | 0.6542 | -686.0 | -583.1 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -21.82 | 76.85 | 35.80 | 235.29 | 0.6629 | -772.0 | -461.8 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -23.56 | 77.26 | 36.21 | 233.27 | 0.6780 | -737.0 | -595.4 | |
| 0.00 | 1.62 | 0.00 | 1.05 | -20.87 | 76.27 | 35.22 | 236.21 | 0.6508 | -723.0 | -577.4 | |
| 0.00 | 0.85 | 0.00 | 0.56 | -21.15 | 76.31 | 35.26 | 235.85 | 0.6529 | -799.0 | -673.7 | |
| 0.00 | 1.19 | 0.00 | 0.78 | -21.79 | 76.33 | 35.28 | 235.00 | 0.6571 | -696.0 | -610.1 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -22.43 | 76.20 | 35.15 | 234.05 | 0.6597 | -288.0 | -302.6 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -21.12 | 75.80 | 34.75 | 235.55 | 0.6471 | -717.0 | -621.4 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -20.80 | 74.95 | 33.90 | 235.41 | 0.6356 | -812.0 | -707.5 | |
| 0.00 | 1.96 | 0.00 | 1.29 | -23.87 | 75.26 | 34.21 | 231.49 | 0.6594 | -726.0 | -572.9 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -23.71 | 75.17 | 34.12 | 231.64 | 0.6573 | -585.0 | -361.0 | |
| 0.00 | 1.02 | 0.00 | 0.69 | -27.36 | 75.49 | 34.44 | 227.28 | 0.6860 | -662.0 | -507.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
