SDO HMI 2014-12-05 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.55 | 281.97 | 24.49 | 184.18 | -3.70 | 0.62 | -40.43 | 96.08 | 0.6532 | 872.4 | 286.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

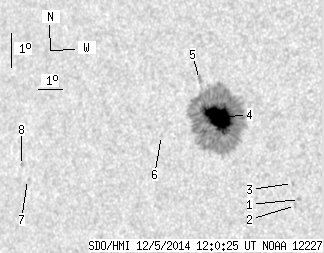

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.86 | -6.08 | 3.57 | -37.48 | 100.35 | 0.6173 | 711.0 | 602.6 | |
| 0.00 | 1.88 | 0.00 | 1.18 | -6.26 | 3.41 | -37.64 | 100.60 | 0.6199 | 584.0 | 516.5 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -5.61 | 3.35 | -37.70 | 99.54 | 0.6195 | 704.0 | 506.0 | |
| 37.55 | 270.78 | 24.49 | 176.76 | -3.66 | 0.65 | -40.40 | 96.02 | 0.6528 | 1090.6 | 291.4 | |
| 0.00 | 3.67 | 0.00 | 2.41 | -2.53 | 359.96 | -41.09 | 94.23 | 0.6608 | 622.0 | 334.7 | |
| 0.00 | 0.85 | 0.00 | 0.58 | -4.20 | 358.35 | -42.70 | 96.53 | 0.6831 | -687.0 | -522.2 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -5.52 | 352.52 | -48.53 | 97.64 | 0.7548 | -608.0 | -523.0 | |
| 0.00 | 1.28 | 0.00 | 0.97 | -5.11 | 352.30 | -48.75 | 97.07 | 0.7570 | -564.0 | -519.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
