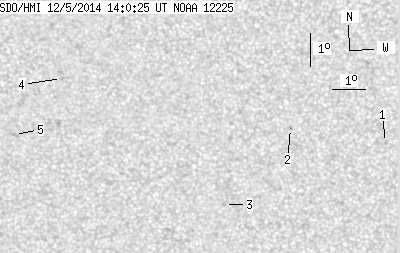

SDO HMI 2014-12-05 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.49 | 0.00 | 3.90 | -16.45 | 38.18 | -1.77 | 174.02 | 0.3007 | 144.8 | -33.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.53 | -16.63 | 45.44 | 5.49 | 197.44 | 0.3070 | 710.0 | 578.3 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -16.19 | 42.50 | 2.54 | 188.53 | 0.2888 | 881.0 | 649.1 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -18.54 | 40.47 | 0.52 | 181.52 | 0.3250 | 816.0 | 663.3 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -14.65 | 35.49 | -4.47 | 163.74 | 0.2704 | -880.0 | -724.9 | |
| 0.00 | 2.90 | 0.00 | 1.51 | -16.36 | 33.99 | -5.96 | 160.87 | 0.3054 | -803.0 | -536.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
