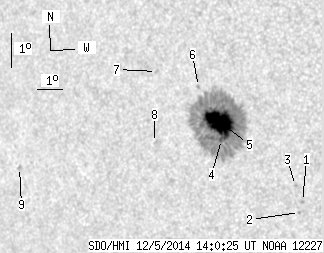

SDO HMI 2014-12-05 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.47 | 275.10 | 29.17 | 176.75 | -3.70 | 0.63 | -39.33 | 96.22 | 0.6385 | 907.3 | 282.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.84 | -5.99 | 3.64 | -36.31 | 100.47 | 0.6012 | 747.0 | 662.0 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -6.31 | 3.50 | -36.45 | 100.98 | 0.6038 | 726.0 | 657.7 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -5.51 | 3.42 | -36.53 | 99.64 | 0.6033 | 779.0 | 632.5 | |
| 2.47 | 266.21 | 1.59 | 170.89 | -4.15 | 0.72 | -39.23 | 96.95 | 0.6378 | 696.2 | 293.3 | |
| 43.00 | -4.00 | 27.58 | -4.00 | -3.65 | 0.68 | -39.28 | 96.15 | 0.6378 | 1121.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -2.59 | 359.92 | -40.04 | 94.41 | 0.6469 | 421.0 | 317.2 | |
| 0.00 | 1.71 | 0.00 | 1.13 | -2.15 | 358.29 | -41.67 | 93.60 | 0.6680 | -540.0 | -389.2 | |
| 0.00 | 0.85 | 0.00 | 0.57 | -4.25 | 358.10 | -41.86 | 96.72 | 0.6724 | -655.0 | -598.2 | |
| 0.00 | 1.71 | 0.00 | 1.26 | -5.01 | 352.38 | -47.57 | 97.07 | 0.7433 | -687.0 | -561.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
