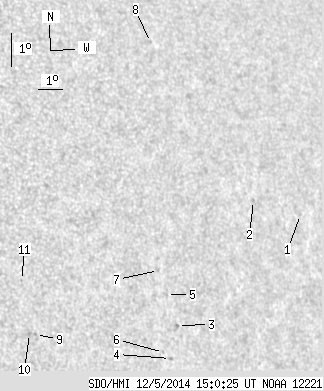

SDO HMI 2014-12-05 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.45 | 0.00 | 8.43 | 5.37 | 82.02 | 42.62 | 277.48 | 0.6819 | 279.3 | 240.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.58 | 7.20 | 88.49 | 49.09 | 279.21 | 0.7619 | -532.0 | -408.9 | |
| 0.00 | 1.02 | 0.00 | 0.75 | 7.63 | 86.45 | 47.05 | 280.07 | 0.7392 | -452.0 | -369.7 | |
| 0.00 | 1.62 | 0.00 | 1.11 | 3.93 | 82.84 | 43.44 | 275.36 | 0.6914 | 511.0 | 467.4 | |
| 0.00 | 1.45 | 0.00 | 0.98 | 2.95 | 82.50 | 43.10 | 273.97 | 0.6864 | 543.0 | 374.1 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 4.85 | 82.46 | 43.06 | 276.74 | 0.6874 | 367.0 | 334.0 | |
| 0.00 | 0.85 | 0.00 | 0.58 | 3.13 | 82.23 | 42.82 | 274.25 | 0.6830 | 547.0 | 454.2 | |
| 0.00 | 1.02 | 0.00 | 0.69 | 5.56 | 82.20 | 42.80 | 277.81 | 0.6849 | 535.0 | 406.8 | |
| 0.00 | 1.11 | 0.00 | 0.77 | 12.38 | 82.90 | 43.50 | 287.38 | 0.7068 | -546.0 | -491.8 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 3.69 | 77.27 | 37.87 | 275.58 | 0.6178 | 784.0 | 667.2 | |
| 0.00 | 1.62 | 0.00 | 1.02 | 3.72 | 77.04 | 37.64 | 275.65 | 0.6147 | 760.0 | 619.3 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 5.29 | 76.84 | 37.44 | 278.24 | 0.6140 | 555.0 | 449.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
