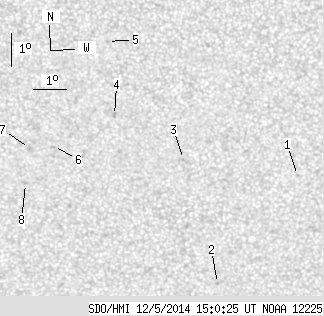

SDO HMI 2014-12-05 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.30 | 0.00 | 4.81 | -15.60 | 36.87 | -2.53 | 170.87 | 0.2822 | -209.0 | -305.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 15:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.40 | -16.16 | 42.50 | 3.10 | 190.37 | 0.2899 | 973.0 | 687.2 | |
| 0.00 | 1.19 | 0.00 | 0.63 | -19.52 | 40.05 | 0.65 | 181.80 | 0.3412 | 703.0 | 534.9 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -15.67 | 39.00 | -0.40 | 178.59 | 0.2769 | 493.0 | 383.3 | |
| 0.00 | 1.96 | 0.00 | 1.01 | -14.32 | 36.90 | -2.50 | 170.49 | 0.2575 | -702.0 | -617.6 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -12.07 | 36.71 | -2.69 | 167.93 | 0.2205 | -851.0 | -700.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -15.26 | 35.02 | -4.39 | 164.65 | 0.2799 | -654.0 | -620.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -15.32 | 34.28 | -5.13 | 162.29 | 0.2845 | -902.0 | -679.4 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -16.40 | 34.12 | -5.28 | 162.95 | 0.3024 | -732.0 | -562.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
