SDO HMI 2014-12-05 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.71 | 0.00 | 8.97 | 6.15 | 83.80 | 44.95 | 278.28 | 0.7116 | -1.5 | 33.2 | |
|
previous
or next observation for the same group /

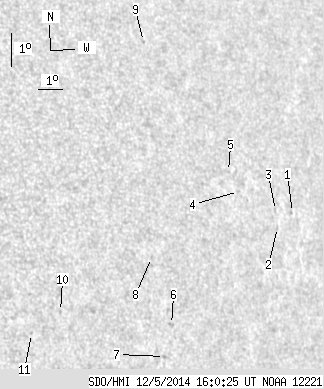

back to the solar disc SDO HMI 2014-12-05 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.59 | 7.23 | 88.49 | 49.64 | 279.18 | 0.7681 | -453.0 | -399.8 | |
| 0.00 | 0.94 | 0.00 | 0.71 | 6.78 | 87.74 | 48.89 | 278.70 | 0.7592 | -546.0 | -422.6 | |
| 0.00 | 1.28 | 0.00 | 0.97 | 7.29 | 87.72 | 48.87 | 279.36 | 0.7596 | -533.0 | -434.7 | |
| 0.00 | 1.11 | 0.00 | 0.82 | 7.86 | 86.15 | 47.30 | 280.35 | 0.7424 | -411.0 | -349.2 | |
| 0.00 | 0.94 | 0.00 | 0.69 | 8.46 | 85.80 | 46.95 | 281.22 | 0.7393 | -570.0 | -459.6 | |
| 0.00 | 2.05 | 0.00 | 1.41 | 3.93 | 82.86 | 44.01 | 275.31 | 0.6985 | 534.0 | 439.2 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 2.98 | 82.52 | 43.67 | 273.97 | 0.6936 | 495.0 | 425.7 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 5.92 | 82.21 | 43.36 | 278.25 | 0.6924 | 533.0 | 408.9 | |
| 0.00 | 0.94 | 0.00 | 0.66 | 12.38 | 82.89 | 44.04 | 287.22 | 0.7132 | -442.0 | -370.5 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 4.33 | 78.46 | 39.61 | 276.39 | 0.6421 | 594.0 | 486.4 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 3.68 | 77.32 | 38.47 | 275.51 | 0.6260 | 782.0 | 614.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
