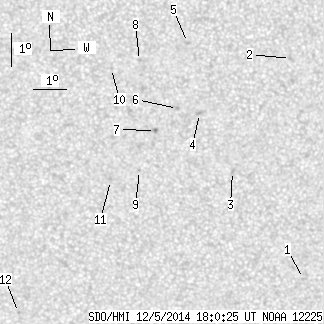

SDO HMI 2014-12-05 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.45 | 0.00 | 8.47 | -14.73 | 36.42 | -1.33 | 175.17 | 0.2636 | -482.6 | -369.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 18:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.54 | -19.40 | 40.27 | 2.52 | 187.02 | 0.3415 | 708.0 | 527.8 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -12.63 | 39.80 | 2.05 | 188.88 | 0.2277 | 897.0 | 718.0 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -16.07 | 38.05 | 0.30 | 181.02 | 0.2835 | 82.0 | 196.9 | |
| 0.00 | 2.47 | 0.00 | 1.27 | -14.29 | 37.04 | -0.71 | 177.29 | 0.2537 | -834.0 | -542.7 | |
| 0.00 | 2.22 | 0.00 | 1.13 | -12.14 | 36.69 | -1.06 | 175.21 | 0.2174 | -778.0 | -621.3 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -14.14 | 36.37 | -1.38 | 174.67 | 0.2519 | -873.0 | -691.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -14.81 | 35.69 | -2.05 | 172.44 | 0.2645 | -1100.0 | -844.5 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -12.68 | 35.23 | -2.52 | 169.22 | 0.2300 | -860.0 | -637.9 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -16.04 | 35.19 | -2.56 | 171.34 | 0.2862 | -813.0 | -519.9 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -12.92 | 34.38 | -3.37 | 165.96 | 0.2372 | -721.0 | -467.7 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -16.35 | 34.29 | -3.46 | 168.59 | 0.2939 | -829.0 | -759.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -20.46 | 31.29 | -6.46 | 163.46 | 0.3717 | -670.0 | -524.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
