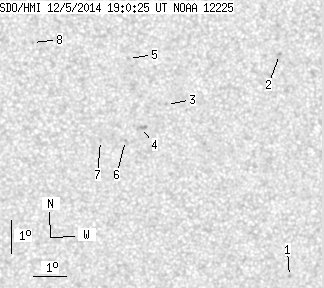

SDO HMI 2014-12-05 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.82 | 0.00 | 5.55 | -14.45 | 36.09 | -1.10 | 175.60 | 0.2591 | -461.1 | -472.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 19:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.40 | -19.44 | 40.22 | 3.03 | 188.38 | 0.3431 | 779.0 | 622.9 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -12.60 | 39.82 | 2.63 | 191.33 | 0.2290 | 1016.0 | 846.5 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -14.12 | 36.40 | -0.80 | 176.90 | 0.2507 | -876.0 | -705.4 | |
| 0.00 | 3.75 | 0.00 | 1.93 | -14.82 | 35.63 | -1.56 | 174.23 | 0.2636 | -1042.0 | -839.5 | |
| 0.00 | 1.19 | 0.00 | 0.61 | -12.72 | 35.25 | -1.94 | 171.66 | 0.2289 | -998.0 | -743.4 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -15.21 | 35.14 | -2.06 | 172.63 | 0.2712 | -790.0 | -673.1 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -15.21 | 34.37 | -2.82 | 169.94 | 0.2731 | -898.0 | -732.3 | |
| 0.00 | 0.85 | 0.00 | 0.43 | -12.23 | 32.35 | -4.84 | 159.20 | 0.2334 | -880.0 | -643.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
