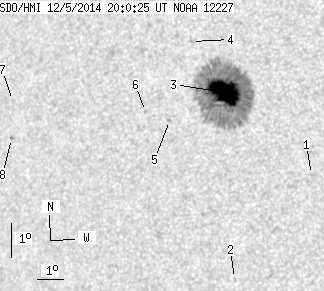

SDO HMI 2014-12-05 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.08 | 290.93 | 28.85 | 178.62 | -3.67 | 0.67 | -35.97 | 96.65 | 0.5924 | 1058.0 | 320.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 20:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.61 | -6.06 | 3.73 | -32.91 | 101.51 | 0.5535 | 628.0 | 555.2 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -9.17 | 0.65 | -35.99 | 105.75 | 0.6051 | 573.0 | 413.9 | |
| 47.08 | 284.37 | 28.85 | 174.40 | -3.63 | 0.74 | -35.90 | 96.60 | 0.5913 | 1283.7 | 328.8 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -2.12 | 359.58 | -37.06 | 93.93 | 0.6059 | 642.0 | 560.1 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -4.47 | 358.65 | -37.99 | 97.62 | 0.6214 | 602.0 | 406.5 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -4.20 | 357.76 | -38.88 | 97.05 | 0.6331 | -484.0 | -478.0 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -3.89 | 352.50 | -44.14 | 95.89 | 0.7008 | -487.0 | -439.4 | |
| 0.00 | 1.28 | 0.00 | 0.89 | -5.02 | 352.37 | -44.27 | 97.48 | 0.7037 | -581.0 | -490.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
