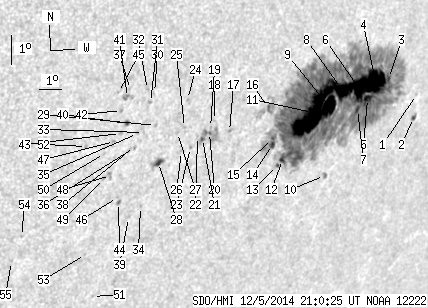

SDO HMI 2014-12-05 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 200.53 | 996.45 | 164.34 | 811.60 | -19.52 | 85.69 | 49.60 | 244.78 | 0.7952 | 620.1 | 249.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-05 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.54 | -19.26 | 90.22 | 54.13 | 246.50 | 0.8364 | -553.0 | -541.6 | |
| 1.28 | 2.64 | 1.16 | 2.40 | -19.98 | 90.42 | 54.33 | 245.71 | 0.8398 | -529.0 | -413.7 | |
| 2.47 | 903.55 | 2.13 | 742.92 | -18.74 | 88.51 | 52.42 | 246.62 | 0.8198 | -197.2 | 298.2 | |
| 32.07 | -3.00 | 27.21 | -3.00 | -18.80 | 87.87 | 51.78 | 246.37 | 0.8141 | 723.0 | 999999 | |
| 3.84 | -3.00 | 3.26 | -3.00 | -19.37 | 87.71 | 51.63 | 245.65 | 0.8141 | 498.4 | 999999 | |
| 22.52 | -3.00 | 18.84 | -3.00 | -19.05 | 87.17 | 51.08 | 245.87 | 0.8082 | 947.4 | 999999 | |
| 2.99 | -3.00 | 2.52 | -3.00 | -19.71 | 87.36 | 51.27 | 245.14 | 0.8117 | 360.9 | 999999 | |
| 27.81 | -3.00 | 22.83 | -3.00 | -19.04 | 86.28 | 50.19 | 245.59 | 0.7997 | 977.1 | 999999 | |
| 20.39 | -3.00 | 16.66 | -3.00 | -19.61 | 85.93 | 49.84 | 244.80 | 0.7979 | 548.7 | 999999 | |
| 0.51 | 1.88 | 0.43 | 1.58 | -21.80 | 86.67 | 50.59 | 242.44 | 0.8114 | -528.0 | -398.1 | |
| 73.01 | -3.00 | 58.86 | -3.00 | -19.79 | 85.18 | 49.09 | 244.33 | 0.7913 | 1231.2 | 999999 | |
| 2.73 | -3.00 | 2.19 | -3.00 | -21.27 | 84.37 | 48.28 | 242.24 | 0.7883 | 204.8 | 999999 | |
| 0.85 | -3.00 | 0.68 | -3.00 | -21.46 | 84.21 | 48.13 | 241.96 | 0.7875 | -283.8 | 999999 | |
| 2.73 | -3.00 | 2.15 | -3.00 | -20.79 | 83.69 | 47.60 | 242.57 | 0.7802 | 778.3 | 999999 | |
| 1.02 | -3.00 | 0.80 | -3.00 | -20.60 | 83.61 | 47.52 | 242.78 | 0.7787 | 927.4 | 999999 | |
| 0.94 | 17.66 | 0.73 | 13.63 | -19.62 | 83.04 | 46.95 | 243.77 | 0.7697 | -189.7 | 363.8 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -20.37 | 81.54 | 45.45 | 242.25 | 0.7573 | 546.0 | 389.4 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -20.02 | 80.74 | 44.65 | 242.36 | 0.7478 | -439.0 | -360.2 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -20.24 | 80.64 | 44.56 | 242.04 | 0.7476 | -379.0 | -360.0 | |
| 0.34 | 18.34 | 0.25 | 13.67 | -20.39 | 80.66 | 44.57 | 241.85 | 0.7484 | -493.2 | -180.9 | |
| 0.85 | -20.00 | 0.63 | -20.00 | -20.58 | 80.41 | 44.33 | 241.51 | 0.7467 | -623.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.50 | -20.52 | 80.17 | 44.08 | 241.48 | 0.7439 | -615.0 | -554.8 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -20.86 | 79.99 | 43.90 | 240.96 | 0.7435 | 521.0 | 456.1 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -19.35 | 79.33 | 43.24 | 242.61 | 0.7304 | -485.0 | -464.2 | |
| 0.00 | 1.02 | 0.00 | 0.75 | -20.23 | 79.50 | 43.41 | 241.55 | 0.7358 | -539.0 | -513.5 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -20.99 | 79.64 | 43.55 | 240.65 | 0.7404 | 557.0 | 486.8 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -20.39 | 79.25 | 43.16 | 241.24 | 0.7338 | -647.0 | -562.1 | |
| 3.07 | 8.19 | 2.23 | 5.93 | -21.33 | 78.76 | 42.68 | 239.80 | 0.7329 | 48.2 | 189.0 | |
| 0.00 | 1.54 | 0.00 | 1.10 | -20.16 | 78.23 | 42.14 | 241.06 | 0.7221 | -520.0 | -432.6 | |
| 0.00 | 0.68 | 0.00 | 0.48 | -19.12 | 77.85 | 41.76 | 242.24 | 0.7135 | -555.0 | -483.2 | |
| 0.00 | 1.28 | 0.00 | 0.90 | -19.43 | 77.78 | 41.69 | 241.79 | 0.7141 | -697.0 | -532.3 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -19.02 | 77.53 | 41.44 | 242.21 | 0.7096 | -500.0 | -471.5 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -20.38 | 77.79 | 41.70 | 240.56 | 0.7184 | -326.0 | -365.6 | |
| 0.00 | 0.85 | 0.00 | 0.62 | -22.74 | 78.50 | 42.42 | 237.91 | 0.7367 | -453.0 | -375.5 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -20.41 | 77.55 | 41.46 | 240.41 | 0.7160 | -285.0 | -322.8 | |
| 0.00 | 1.19 | 0.00 | 0.85 | -20.85 | 77.57 | 41.48 | 239.84 | 0.7182 | -487.0 | -461.0 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -19.02 | 76.82 | 40.73 | 241.88 | 0.7018 | -565.0 | -477.6 | |
| 0.00 | 1.71 | 0.00 | 1.21 | -20.95 | 77.39 | 41.30 | 239.63 | 0.7168 | -584.0 | -467.1 | |
| 0.00 | 1.45 | 0.00 | 1.05 | -23.09 | 78.12 | 42.03 | 237.27 | 0.7344 | -627.0 | -453.4 | |
| 1.11 | 1.96 | 0.78 | 1.37 | -20.09 | 77.02 | 40.94 | 240.56 | 0.7089 | -771.4 | -658.7 | |
| 0.00 | 5.46 | 0.00 | 3.79 | -19.27 | 76.77 | 40.68 | 241.52 | 0.7024 | -761.0 | -684.6 | |
| 0.00 | 1.28 | 0.00 | 0.89 | -19.68 | 76.64 | 40.56 | 240.92 | 0.7029 | -850.0 | -711.3 | |
| 0.00 | 1.54 | 0.00 | 1.07 | -20.40 | 76.83 | 40.74 | 240.06 | 0.7083 | -818.0 | -669.6 | |
| 0.00 | 2.13 | 0.00 | 1.53 | -22.60 | 77.50 | 41.42 | 237.57 | 0.7259 | -425.0 | -409.7 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -19.11 | 76.35 | 40.26 | 241.53 | 0.6971 | -850.0 | -654.8 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -22.44 | 77.40 | 41.31 | 237.72 | 0.7241 | -545.0 | -421.0 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -20.66 | 76.66 | 40.57 | 239.64 | 0.7077 | -866.0 | -748.6 | |
| 0.00 | 2.39 | 0.00 | 1.69 | -21.74 | 76.85 | 40.77 | 238.34 | 0.7150 | -624.0 | -465.3 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -21.83 | 76.63 | 40.55 | 238.10 | 0.7132 | -651.0 | -563.2 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -21.03 | 76.37 | 40.28 | 238.99 | 0.7064 | -706.0 | -588.1 | |
| 0.00 | 0.77 | 0.00 | 0.56 | -25.66 | 77.59 | 41.50 | 233.84 | 0.7422 | -503.0 | -424.2 | |
| 0.00 | 1.54 | 0.00 | 1.06 | -20.81 | 75.55 | 39.47 | 238.85 | 0.6966 | -693.0 | -605.5 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -24.28 | 76.72 | 40.64 | 235.05 | 0.7266 | -594.0 | -457.6 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -23.68 | 73.83 | 37.74 | 234.12 | 0.6942 | -634.0 | -572.7 | |
| 0.00 | 0.94 | 0.00 | 0.65 | -24.49 | 73.70 | 37.61 | 233.01 | 0.6977 | -584.0 | -465.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
