SDO HMI 2014-12-05 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.68 | 14.50 | 0.51 | 10.72 | 6.94 | 82.98 | 47.45 | 279.08 | 0.7431 | 141.5 | 24.0 | |
|
previous
or next observation for the same group /

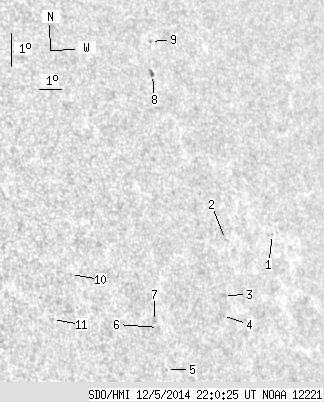

back to the solar disc SDO HMI 2014-12-05 22:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.42 | 7.32 | 87.80 | 52.27 | 279.00 | 0.7965 | -471.0 | -395.3 | |
| 0.00 | 0.77 | 0.00 | 0.60 | 7.18 | 85.54 | 50.00 | 279.09 | 0.7721 | -591.0 | -527.1 | |
| 0.00 | 1.88 | 0.00 | 1.44 | 5.51 | 85.22 | 49.68 | 276.96 | 0.7669 | -464.0 | -427.2 | |
| 0.00 | 1.71 | 0.00 | 1.31 | 4.92 | 85.11 | 49.57 | 276.20 | 0.7652 | -157.0 | -212.0 | |
| 0.00 | 0.68 | 0.00 | 0.50 | 3.33 | 82.47 | 46.94 | 274.28 | 0.7338 | 574.0 | 533.1 | |
| 0.00 | 1.88 | 0.00 | 1.36 | 4.57 | 82.22 | 46.68 | 276.00 | 0.7316 | 605.0 | 439.0 | |
| 0.00 | 1.19 | 0.00 | 0.86 | 4.75 | 82.06 | 46.53 | 276.26 | 0.7299 | 567.0 | 471.9 | |
| 0.68 | 2.64 | 0.51 | 1.98 | 12.13 | 83.17 | 47.64 | 285.97 | 0.7538 | -611.0 | -499.7 | |
| 0.00 | 0.77 | 0.00 | 0.58 | 13.13 | 83.33 | 47.80 | 287.24 | 0.7577 | 568.0 | 502.6 | |
| 0.00 | 1.02 | 0.00 | 0.70 | 6.16 | 78.67 | 43.13 | 278.67 | 0.6900 | 480.0 | 414.6 | |
| 0.00 | 1.45 | 0.00 | 0.97 | 4.83 | 77.82 | 42.28 | 276.84 | 0.6776 | 688.0 | 518.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
