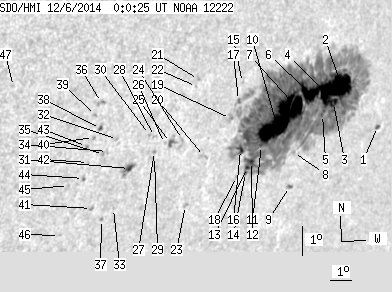

SDO HMI 2014-12-06 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 179.58 | 954.96 | 152.55 | 805.88 | -19.52 | 85.84 | 51.40 | 245.37 | 0.8122 | 608.9 | 294.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.02 | 2.22 | 0.97 | 2.10 | -20.10 | 90.50 | 56.07 | 246.04 | 0.8547 | -556.5 | -468.6 | |
| 34.89 | 881.45 | 30.73 | 749.27 | -18.80 | 87.87 | 53.44 | 246.86 | 0.8292 | 597.8 | 326.3 | |
| 5.72 | -2.00 | 5.03 | -2.00 | -19.33 | 87.70 | 53.27 | 246.19 | 0.8289 | 444.7 | 999999 | |
| 21.41 | -2.00 | 18.58 | -2.00 | -19.01 | 87.14 | 52.71 | 246.40 | 0.8230 | 827.7 | 999999 | |
| 0.85 | -2.00 | 0.75 | -2.00 | -19.71 | 87.30 | 52.87 | 245.63 | 0.8262 | 332.4 | 999999 | |
| 20.90 | -2.00 | 17.80 | -2.00 | -19.04 | 86.33 | 51.89 | 246.13 | 0.8156 | 798.2 | 999999 | |
| 24.06 | -2.00 | 20.29 | -2.00 | -19.41 | 85.78 | 51.35 | 245.53 | 0.8115 | 744.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.47 | -20.90 | 86.37 | 51.94 | 243.95 | 0.8210 | 68.0 | 80.9 | |
| 0.77 | 2.39 | 0.67 | 2.09 | -21.98 | 86.71 | 52.28 | 242.79 | 0.8270 | -527.3 | -450.8 | |
| 56.05 | -2.00 | 46.72 | -2.00 | -19.98 | 85.08 | 50.65 | 244.63 | 0.8065 | 1137.0 | 999999 | |
| 0.26 | -2.00 | 0.21 | -2.00 | -20.67 | 84.64 | 50.21 | 243.66 | 0.8045 | 801.7 | 999999 | |
| 1.96 | -2.00 | 1.62 | -2.00 | -21.17 | 84.38 | 49.95 | 242.97 | 0.8036 | 303.5 | 999999 | |
| 1.45 | -2.00 | 1.20 | -2.00 | -21.36 | 84.27 | 49.84 | 242.71 | 0.8031 | -145.2 | 999999 | |
| 0.85 | -2.00 | 0.71 | -2.00 | -21.52 | 84.24 | 49.81 | 242.51 | 0.8034 | -405.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.88 | -18.68 | 82.89 | 48.46 | 245.49 | 0.7816 | -205.0 | -135.2 | |
| 3.50 | -2.00 | 2.85 | -2.00 | -20.79 | 83.67 | 49.23 | 243.18 | 0.7957 | 861.2 | 999999 | |
| 0.68 | 12.88 | 0.54 | 10.28 | -19.24 | 82.92 | 48.49 | 244.81 | 0.7836 | 320.0 | 480.4 | |
| 0.00 | 0.85 | 0.00 | 0.70 | -21.65 | 83.86 | 49.43 | 242.22 | 0.8002 | 385.0 | 342.7 | |
| 0.00 | 3.50 | 0.00 | 2.78 | -19.81 | 82.77 | 48.34 | 244.06 | 0.7839 | 245.0 | 239.2 | |
| 0.00 | 2.47 | 0.00 | 1.95 | -21.00 | 82.03 | 47.60 | 242.33 | 0.7807 | 666.0 | 500.6 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -18.57 | 80.82 | 46.39 | 244.89 | 0.7603 | -562.0 | -496.9 | |
| 0.00 | 0.85 | 0.00 | 0.65 | -18.79 | 80.80 | 46.37 | 244.61 | 0.7609 | -514.0 | -427.7 | |
| 0.00 | 2.13 | 0.00 | 1.69 | -22.56 | 81.82 | 47.39 | 240.36 | 0.7843 | 580.0 | 501.2 | |
| 0.00 | 1.62 | 0.00 | 1.24 | -20.46 | 80.79 | 46.36 | 242.52 | 0.7666 | -344.0 | -256.9 | |
| 1.71 | 5.97 | 1.30 | 4.55 | -20.55 | 80.28 | 45.85 | 242.20 | 0.7618 | -675.8 | -489.1 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -20.58 | 80.02 | 45.58 | 242.06 | 0.7593 | -539.0 | -491.7 | |
| 0.00 | 1.19 | 0.00 | 0.90 | -20.83 | 79.66 | 45.23 | 241.60 | 0.7567 | 809.0 | 753.0 | |
| 0.00 | 1.37 | 0.00 | 1.02 | -20.35 | 79.48 | 45.05 | 242.12 | 0.7530 | -585.0 | -515.8 | |
| 0.00 | 0.85 | 0.00 | 0.65 | -20.99 | 79.72 | 45.29 | 241.42 | 0.7579 | 412.0 | 544.1 | |
| 0.00 | 1.02 | 0.00 | 0.76 | -20.29 | 79.23 | 44.80 | 242.09 | 0.7502 | -466.0 | -485.4 | |
| 2.73 | 8.19 | 2.03 | 6.10 | -21.36 | 78.75 | 44.31 | 240.54 | 0.7496 | -45.2 | -80.5 | |
| 0.00 | 1.19 | 0.00 | 0.87 | -20.44 | 77.88 | 43.45 | 241.32 | 0.7369 | -675.0 | -539.3 | |
| 0.00 | 0.85 | 0.00 | 0.64 | -22.64 | 78.53 | 44.10 | 238.85 | 0.7529 | -416.0 | -340.3 | |
| 0.00 | 1.62 | 0.00 | 1.18 | -20.82 | 77.58 | 43.14 | 240.70 | 0.7353 | -486.0 | -365.9 | |
| 0.00 | 1.62 | 0.00 | 1.18 | -20.91 | 77.44 | 43.00 | 240.51 | 0.7343 | -577.0 | -391.3 | |
| 0.00 | 2.73 | 0.00 | 1.94 | -19.27 | 76.79 | 42.36 | 242.34 | 0.7205 | -748.0 | -718.4 | |
| 0.00 | 1.28 | 0.00 | 0.96 | -22.99 | 78.14 | 43.71 | 238.24 | 0.7505 | -570.0 | -489.1 | |
| 0.77 | 2.30 | 0.55 | 1.65 | -20.09 | 77.02 | 42.59 | 241.38 | 0.7264 | -640.2 | -511.2 | |
| 0.00 | 1.28 | 0.00 | 0.91 | -19.68 | 76.67 | 42.24 | 241.75 | 0.7209 | -744.0 | -585.0 | |
| 0.00 | 1.19 | 0.00 | 0.86 | -20.37 | 76.82 | 42.39 | 240.92 | 0.7255 | -709.0 | -658.0 | |
| 0.00 | 1.37 | 0.00 | 1.01 | -22.64 | 77.56 | 43.12 | 238.40 | 0.7431 | -438.0 | -439.7 | |
| 0.00 | 0.85 | 0.00 | 0.62 | -21.16 | 76.88 | 42.45 | 239.93 | 0.7296 | -495.0 | -438.3 | |
| 0.00 | 1.19 | 0.00 | 0.86 | -20.66 | 76.61 | 42.18 | 240.46 | 0.7246 | -737.0 | -682.9 | |
| 0.00 | 1.28 | 0.00 | 0.93 | -21.67 | 76.84 | 42.41 | 239.27 | 0.7316 | -553.0 | -491.9 | |
| 0.00 | 1.11 | 0.00 | 0.80 | -21.89 | 76.28 | 41.85 | 238.71 | 0.7268 | -487.0 | -391.1 | |
| 0.00 | 0.85 | 0.00 | 0.62 | -23.50 | 76.49 | 42.06 | 236.80 | 0.7366 | -567.0 | -453.7 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -18.75 | 73.01 | 38.58 | 241.17 | 0.6765 | -668.0 | -472.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
