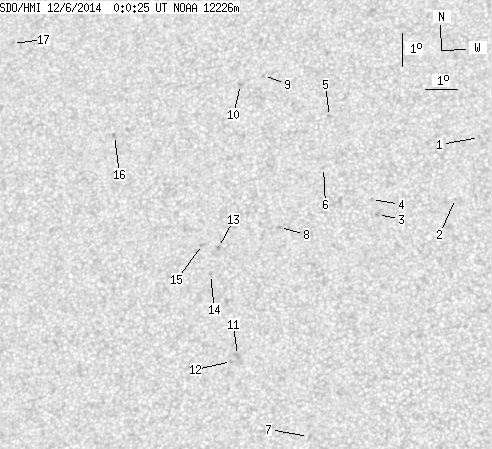

SDO HMI 2014-12-06 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.39 | 0.00 | 13.08 | 14.39 | 17.66 | -16.77 | 48.87 | 0.3750 | -678.0 | -531.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 00:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | 16.64 | 24.90 | -9.53 | 29.38 | 0.3248 | -742.0 | -660.1 | |
| 0.00 | 0.51 | 0.00 | 0.27 | 14.77 | 24.24 | -10.19 | 34.34 | 0.3046 | -662.0 | -528.0 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 14.29 | 21.84 | -12.59 | 41.10 | 0.3228 | -871.0 | -715.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 14.74 | 21.62 | -12.81 | 40.62 | 0.3307 | -651.0 | -520.2 | |
| 0.00 | 1.37 | 0.00 | 0.73 | 17.29 | 20.12 | -14.31 | 38.87 | 0.3776 | -712.0 | -525.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 15.72 | 20.05 | -14.38 | 41.90 | 0.3596 | -829.0 | -597.8 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 7.61 | 20.00 | -14.43 | 62.64 | 0.2793 | -592.0 | -558.5 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 13.89 | 18.78 | -15.65 | 48.02 | 0.3537 | -862.0 | -739.9 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 18.56 | 17.88 | -16.55 | 40.70 | 0.4158 | -632.0 | -480.6 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 18.28 | 17.16 | -17.27 | 42.34 | 0.4203 | -822.0 | -694.3 | |
| 0.00 | 3.50 | 0.00 | 1.84 | 10.03 | 17.70 | -16.73 | 59.12 | 0.3318 | -842.0 | -712.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 9.85 | 17.52 | -16.91 | 59.85 | 0.3329 | -807.0 | -717.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 13.29 | 16.89 | -17.54 | 52.47 | 0.3714 | -1004.0 | -828.2 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 12.47 | 16.70 | -17.73 | 54.60 | 0.3665 | -690.0 | -532.8 | |
| 0.00 | 2.13 | 0.00 | 1.14 | 13.38 | 16.38 | -18.05 | 53.05 | 0.3790 | -747.0 | -567.0 | |
| 0.00 | 1.96 | 0.00 | 1.09 | 16.71 | 13.20 | -21.23 | 50.78 | 0.4496 | -759.0 | -621.9 | |
| 0.00 | 2.05 | 0.00 | 1.19 | 19.56 | 9.35 | -25.08 | 50.38 | 0.5207 | 698.0 | 502.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
