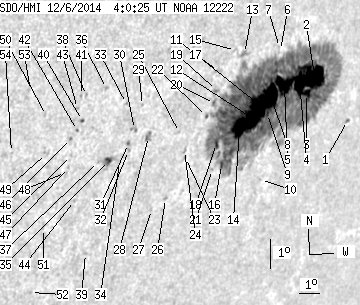

SDO HMI 2014-12-06 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 178.36 | 942.24 | 159.18 | 833.51 | -19.45 | 85.78 | 53.55 | 246.11 | 0.8313 | 644.3 | 267.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 04:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 1.45 | 0.60 | 1.46 | -20.14 | 90.50 | 58.27 | 246.55 | 0.8724 | -462.1 | -412.5 | |
| 35.42 | 872.08 | 32.84 | 777.73 | -18.71 | 87.82 | 55.58 | 247.53 | 0.8476 | 596.6 | 294.6 | |
| 5.03 | -2.00 | 4.67 | -2.00 | -19.27 | 87.66 | 55.42 | 246.85 | 0.8474 | 437.9 | 999999 | |
| 20.91 | -2.00 | 19.07 | -2.00 | -18.93 | 87.10 | 54.86 | 247.11 | 0.8418 | 855.5 | 999999 | |
| 20.65 | -2.00 | 18.48 | -2.00 | -18.98 | 86.31 | 54.08 | 246.83 | 0.8351 | 889.0 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.37 | -17.92 | 85.62 | 53.38 | 247.90 | 0.8264 | 355.0 | 389.8 | |
| 0.00 | 0.60 | 0.00 | 0.52 | -17.82 | 85.52 | 53.29 | 247.99 | 0.8254 | 616.0 | 574.3 | |
| 23.98 | -2.00 | 21.22 | -2.00 | -19.33 | 85.73 | 53.49 | 246.28 | 0.8307 | 907.1 | 999999 | |
| 2.39 | -2.00 | 2.13 | -2.00 | -19.89 | 85.85 | 53.61 | 245.65 | 0.8331 | 17.0 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.47 | -21.99 | 86.57 | 54.34 | 243.43 | 0.8445 | -465.0 | -375.2 | |
| 20.14 | -2.00 | 17.63 | -2.00 | -19.61 | 85.23 | 52.99 | 245.81 | 0.8269 | 1203.1 | 999999 | |
| 23.13 | -2.00 | 20.27 | -2.00 | -20.05 | 85.13 | 52.89 | 245.26 | 0.8271 | 975.1 | 999999 | |
| 0.00 | 4.86 | 0.00 | 4.08 | -18.00 | 83.80 | 51.57 | 247.30 | 0.8098 | 371.0 | 281.4 | |
| 17.58 | -2.00 | 15.24 | -2.00 | -20.33 | 84.58 | 52.35 | 244.77 | 0.8229 | 1172.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.92 | -17.91 | 83.32 | 51.08 | 247.28 | 0.8049 | -381.0 | -181.9 | |
| 2.30 | -2.00 | 2.00 | -2.00 | -21.50 | 84.23 | 51.99 | 243.29 | 0.8229 | -246.7 | 999999 | |
| 0.00 | 4.35 | 0.00 | 3.58 | -18.56 | 82.74 | 50.50 | 246.32 | 0.8011 | 331.0 | 117.7 | |
| 2.65 | -2.00 | 2.25 | -2.00 | -20.83 | 83.64 | 51.41 | 243.89 | 0.8158 | 907.3 | 999999 | |
| 0.00 | 2.47 | 0.00 | 2.05 | -19.15 | 82.89 | 50.65 | 245.65 | 0.8041 | 567.0 | 405.3 | |
| 0.00 | 4.44 | 0.00 | 3.69 | -19.56 | 82.96 | 50.73 | 245.18 | 0.8060 | -81.0 | 254.5 | |
| 0.00 | 0.85 | 0.00 | 0.73 | -21.65 | 83.84 | 51.61 | 242.98 | 0.8199 | 432.0 | 330.4 | |
| 0.34 | 1.54 | 0.28 | 1.28 | -19.97 | 82.74 | 50.51 | 244.62 | 0.8050 | 217.0 | 171.4 | |
| 0.00 | 0.77 | 0.00 | 0.64 | -21.26 | 82.29 | 50.05 | 242.92 | 0.8046 | 485.0 | 404.8 | |
| 0.00 | 2.05 | 0.00 | 1.69 | -21.04 | 82.14 | 49.90 | 243.14 | 0.8025 | 729.0 | 576.3 | |
| 0.00 | 0.51 | 0.00 | 0.42 | -20.47 | 81.64 | 49.40 | 243.65 | 0.7961 | 591.0 | 532.2 | |
| 0.00 | 1.45 | 0.00 | 1.21 | -22.57 | 81.92 | 49.68 | 241.24 | 0.8054 | 582.0 | 530.8 | |
| 0.00 | 0.68 | 0.00 | 0.56 | -22.92 | 81.40 | 49.16 | 240.64 | 0.8018 | 141.0 | 154.6 | |
| 0.00 | 5.12 | 0.00 | 4.06 | -20.59 | 80.20 | 47.96 | 242.99 | 0.7826 | -628.0 | -485.1 | |
| 0.00 | 0.94 | 0.00 | 0.73 | -19.61 | 79.52 | 47.28 | 243.95 | 0.7727 | -540.0 | -418.6 | |
| 0.00 | 2.82 | 0.00 | 2.19 | -20.36 | 79.45 | 47.21 | 242.99 | 0.7745 | -730.0 | -618.5 | |
| 0.34 | 1.71 | 0.27 | 1.33 | -20.80 | 79.35 | 47.11 | 242.41 | 0.7751 | 681.8 | 498.1 | |
| 0.00 | 1.37 | 0.00 | 1.07 | -21.03 | 79.44 | 47.20 | 242.17 | 0.7768 | 543.0 | 574.5 | |
| 0.00 | 1.11 | 0.00 | 0.85 | -19.54 | 78.76 | 46.52 | 243.75 | 0.7648 | -487.0 | -440.1 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -21.41 | 79.18 | 46.94 | 241.61 | 0.7756 | 437.0 | 461.7 | |
| 2.39 | 8.02 | 1.85 | 6.20 | -21.34 | 78.64 | 46.40 | 241.47 | 0.7701 | 205.8 | 143.2 | |
| 0.00 | 1.79 | 0.00 | 1.34 | -19.06 | 77.68 | 45.44 | 243.93 | 0.7521 | -713.0 | -509.6 | |
| 0.00 | 0.34 | 0.00 | 0.26 | -21.37 | 78.19 | 45.95 | 241.25 | 0.7658 | 31.0 | -23.2 | |
| 0.00 | 1.54 | 0.00 | 1.13 | -19.28 | 76.87 | 44.63 | 243.33 | 0.7444 | -678.0 | -496.1 | |
| 0.00 | 1.45 | 0.00 | 1.15 | -24.33 | 78.89 | 46.66 | 237.96 | 0.7840 | -182.0 | -173.1 | |
| 0.51 | 1.54 | 0.38 | 1.14 | -20.07 | 76.97 | 44.73 | 242.38 | 0.7485 | -636.7 | -535.0 | |
| 0.00 | 1.11 | 0.00 | 0.82 | -19.28 | 76.65 | 44.41 | 243.24 | 0.7421 | -718.0 | -589.6 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -20.38 | 76.86 | 44.62 | 241.93 | 0.7486 | -707.0 | -609.2 | |
| 0.00 | 1.37 | 0.00 | 1.01 | -19.69 | 76.61 | 44.37 | 242.71 | 0.7433 | -462.0 | -339.8 | |
| 0.00 | 1.02 | 0.00 | 0.78 | -22.61 | 77.61 | 45.37 | 239.48 | 0.7649 | -504.0 | -433.7 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -21.17 | 76.89 | 44.65 | 240.95 | 0.7520 | -607.0 | -496.6 | |
| 0.00 | 1.19 | 0.00 | 0.89 | -20.63 | 76.64 | 44.41 | 241.52 | 0.7474 | -575.0 | -538.6 | |
| 0.00 | 0.85 | 0.00 | 0.64 | -21.55 | 76.90 | 44.67 | 240.48 | 0.7537 | -438.0 | -355.3 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -21.71 | 76.83 | 44.59 | 240.25 | 0.7536 | -229.0 | -268.7 | |
| 0.00 | 2.39 | 0.00 | 1.75 | -21.10 | 75.76 | 43.52 | 240.54 | 0.7402 | -640.0 | -519.0 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -19.90 | 75.33 | 43.10 | 241.88 | 0.7308 | -331.0 | -437.6 | |
| 0.00 | 0.51 | 0.00 | 0.39 | -23.51 | 76.58 | 44.34 | 237.92 | 0.7587 | -542.0 | -494.5 | |
| 0.00 | 1.19 | 0.00 | 0.93 | -25.59 | 76.92 | 44.68 | 235.57 | 0.7712 | -83.0 | -98.4 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -19.11 | 74.39 | 42.15 | 242.48 | 0.7174 | -523.0 | -513.2 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -21.06 | 74.23 | 41.99 | 239.87 | 0.7242 | -419.0 | -473.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
