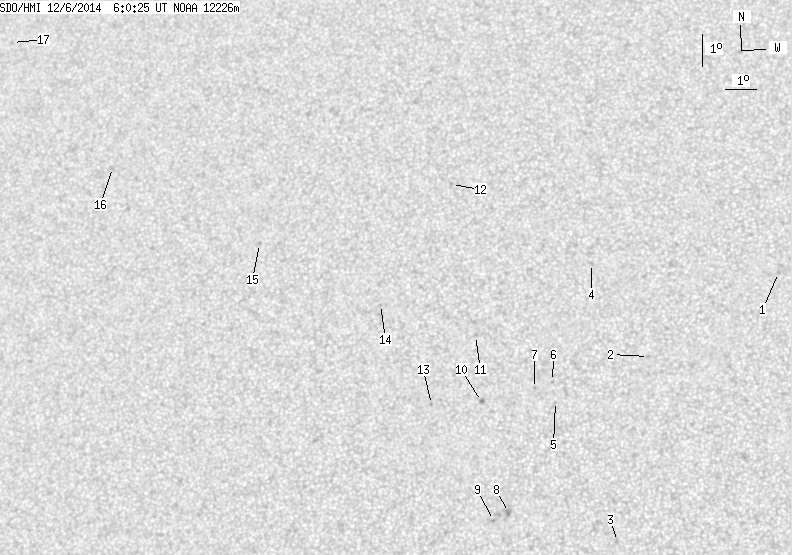

SDO HMI 2014-12-06 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.31 | 0.00 | 13.02 | 14.92 | 15.75 | -15.40 | 44.43 | 0.3633 | -569.4 | -485.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.28 | 25.98 | -5.16 | 16.34 | 0.3068 | -728.0 | -485.5 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 14.70 | 22.05 | -9.10 | 31.48 | 0.2943 | -703.0 | -579.5 | |
| 0.00 | 1.88 | 0.00 | 0.96 | 9.12 | 21.29 | -9.86 | 47.57 | 0.2301 | -765.0 | -587.6 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 17.56 | 20.12 | -11.03 | 31.47 | 0.3508 | -794.0 | -661.3 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 13.33 | 19.23 | -11.92 | 41.55 | 0.3044 | -784.0 | -648.6 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 13.94 | 19.10 | -12.04 | 40.50 | 0.3132 | -832.0 | -653.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 13.73 | 18.55 | -12.59 | 42.21 | 0.3166 | -827.0 | -650.6 | |
| 0.00 | 4.18 | 0.00 | 2.16 | 9.99 | 17.92 | -13.22 | 53.03 | 0.2832 | -1003.0 | -862.5 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 9.75 | 17.47 | -13.67 | 54.62 | 0.2871 | -915.0 | -734.8 | |
| 0.00 | 2.13 | 0.00 | 1.12 | 13.33 | 16.92 | -14.23 | 46.51 | 0.3311 | -928.0 | -862.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 15.34 | 16.60 | -14.54 | 42.87 | 0.3575 | -795.0 | -690.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 20.02 | 15.43 | -15.72 | 36.92 | 0.4255 | -743.0 | -653.5 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 13.24 | 15.35 | -15.79 | 49.62 | 0.3493 | -708.0 | -606.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 16.30 | 13.49 | -17.66 | 46.44 | 0.4036 | -683.0 | -472.1 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 18.18 | 9.30 | -21.85 | 48.89 | 0.4712 | 841.0 | 720.7 | |
| 0.00 | 1.79 | 0.00 | 1.07 | 20.56 | 3.85 | -27.30 | 50.99 | 0.5548 | 148.0 | 232.5 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 24.56 | 359.22 | -31.93 | 49.39 | 0.6360 | 540.0 | 446.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
