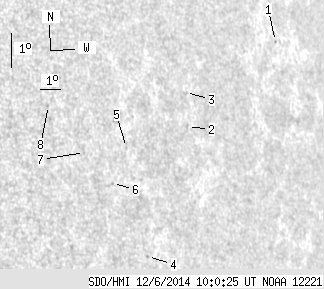

SDO HMI 2014-12-06 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.25 | 0.00 | 5.82 | 4.70 | 80.72 | 51.76 | 275.79 | 0.7876 | 327.4 | 245.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 10:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.89 | 7.33 | 87.34 | 58.37 | 278.46 | 0.8559 | -460.0 | -418.1 | |
| 0.00 | 1.11 | 0.00 | 0.92 | 4.82 | 82.25 | 53.28 | 275.85 | 0.8052 | 277.0 | 297.4 | |
| 0.00 | 1.11 | 0.00 | 0.92 | 5.83 | 82.27 | 53.31 | 277.10 | 0.8061 | 411.0 | 362.2 | |
| 0.00 | 0.85 | 0.00 | 0.67 | 0.98 | 80.04 | 51.08 | 271.08 | 0.7803 | 506.0 | 403.3 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 4.21 | 79.24 | 50.28 | 275.29 | 0.7727 | 334.0 | 269.0 | |
| 0.00 | 0.85 | 0.00 | 0.65 | 3.14 | 78.51 | 49.55 | 273.95 | 0.7639 | 487.0 | 412.1 | |
| 0.00 | 1.02 | 0.00 | 0.76 | 4.06 | 77.31 | 48.35 | 275.25 | 0.7508 | 542.0 | 430.7 | |
| 0.00 | 1.11 | 0.00 | 0.81 | 5.46 | 75.85 | 46.89 | 277.27 | 0.7349 | 522.0 | 342.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
