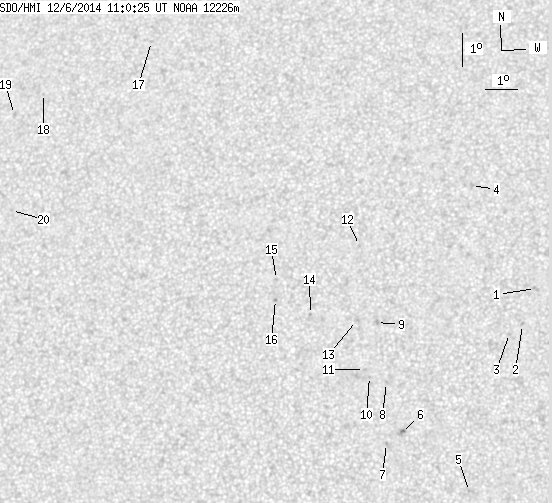

SDO HMI 2014-12-06 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.55 | 0.00 | 14.48 | 14.10 | 15.99 | -12.43 | 40.04 | 0.3214 | -493.1 | -456.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 11:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.39 | 0.00 | 1.23 | 14.39 | 21.92 | -6.50 | 24.09 | 0.2697 | -755.0 | -610.8 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 13.30 | 21.55 | -6.86 | 27.18 | 0.2558 | -576.0 | -542.6 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 13.03 | 21.17 | -7.25 | 29.00 | 0.2549 | -701.0 | -550.0 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 17.56 | 19.82 | -8.60 | 25.54 | 0.3320 | -776.0 | -645.7 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 8.28 | 20.07 | -8.35 | 45.65 | 0.2019 | -655.0 | -510.9 | |
| 0.00 | 3.67 | 0.00 | 1.88 | 10.05 | 17.96 | -10.46 | 46.28 | 0.2485 | -1123.0 | -875.1 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 9.72 | 17.51 | -10.91 | 48.45 | 0.2503 | -848.0 | -641.0 | |
| 0.00 | 0.85 | 0.00 | 0.44 | 11.55 | 17.45 | -10.97 | 43.46 | 0.2723 | -767.0 | -640.4 | |
| 0.00 | 2.05 | 0.00 | 1.06 | 13.36 | 17.06 | -11.36 | 40.08 | 0.2989 | -974.0 | -741.9 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 11.73 | 16.92 | -11.50 | 44.33 | 0.2806 | -877.0 | -708.0 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 11.94 | 16.76 | -11.66 | 44.19 | 0.2850 | -748.0 | -683.0 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 15.71 | 16.41 | -12.01 | 36.84 | 0.3356 | -751.0 | -600.4 | |
| 0.00 | 2.30 | 0.00 | 1.20 | 13.43 | 16.44 | -11.98 | 41.43 | 0.3064 | -467.0 | -362.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 13.61 | 15.00 | -13.42 | 44.22 | 0.3249 | -790.0 | -653.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 14.67 | 13.86 | -14.55 | 44.21 | 0.3502 | -762.0 | -578.9 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 14.06 | 13.87 | -14.55 | 45.48 | 0.3432 | -840.0 | -671.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 22.08 | 9.04 | -19.38 | 39.52 | 0.4852 | 653.0 | 544.5 | |
| 0.00 | 0.68 | 0.00 | 0.39 | 20.44 | 5.61 | -22.81 | 46.39 | 0.5037 | 581.0 | 518.8 | |
| 0.00 | 1.62 | 0.00 | 0.93 | 19.78 | 4.72 | -23.70 | 48.44 | 0.5075 | 709.0 | 465.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 16.79 | 5.05 | -23.37 | 53.04 | 0.4772 | 605.0 | 499.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
