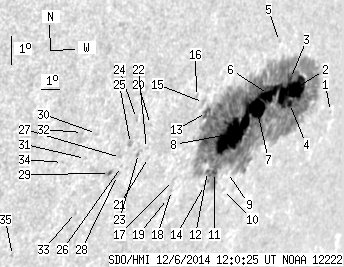

SDO HMI 2014-12-06 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 163.73 | 802.82 | 162.61 | 795.02 | -19.47 | 85.66 | 57.79 | 247.19 | 0.8672 | 681.7 | 213.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 12:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.88 | -19.42 | 90.51 | 62.63 | 248.25 | 0.9036 | -487.0 | -432.7 | |
| 39.76 | 767.92 | 41.30 | 764.46 | -18.75 | 87.53 | 59.66 | 248.42 | 0.8808 | 607.4 | 229.3 | |
| 2.56 | -2.00 | 2.63 | -2.00 | -18.37 | 87.25 | 59.38 | 248.79 | 0.8780 | 592.8 | 999999 | |
| 4.01 | -2.00 | 4.18 | -2.00 | -19.16 | 87.65 | 59.77 | 247.99 | 0.8823 | 385.6 | 999999 | |
| 0.00 | 1.02 | 0.00 | 1.01 | -17.22 | 85.98 | 58.10 | 249.84 | 0.8660 | -173.0 | -188.0 | |
| 18.94 | -2.00 | 18.94 | -2.00 | -18.87 | 86.19 | 58.32 | 248.01 | 0.8705 | 883.8 | 999999 | |
| 26.62 | -2.00 | 26.29 | -2.00 | -19.27 | 85.70 | 57.83 | 247.44 | 0.8673 | 856.6 | 999999 | |
| 64.50 | -2.00 | 62.48 | -2.00 | -20.09 | 84.81 | 56.94 | 246.31 | 0.8616 | 968.8 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.09 | -21.32 | 85.19 | 57.31 | 245.01 | 0.8671 | 393.0 | 371.8 | |
| 0.00 | 0.77 | 0.00 | 0.76 | -21.87 | 85.28 | 57.41 | 244.43 | 0.8689 | 473.0 | 359.0 | |
| 1.71 | -2.00 | 1.65 | -2.00 | -21.32 | 84.42 | 56.55 | 244.82 | 0.8610 | 731.0 | 999999 | |
| 0.68 | -2.00 | 0.65 | -2.00 | -21.29 | 84.00 | 56.13 | 244.75 | 0.8575 | 561.6 | 999999 | |
| 4.18 | -2.00 | 3.84 | -2.00 | -19.42 | 82.93 | 55.05 | 246.61 | 0.8444 | 109.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.66 | -21.73 | 84.09 | 56.22 | 244.27 | 0.8592 | -341.0 | -221.1 | |
| 0.00 | 2.82 | 0.00 | 2.56 | -19.10 | 82.61 | 54.73 | 246.89 | 0.8410 | 259.0 | 154.4 | |
| 0.00 | 1.37 | 0.00 | 1.23 | -18.91 | 82.13 | 54.26 | 246.99 | 0.8364 | -245.0 | -178.8 | |
| 0.00 | 1.28 | 0.00 | 1.17 | -21.56 | 82.25 | 54.38 | 243.95 | 0.8436 | 537.0 | 384.7 | |
| 0.00 | 0.60 | 0.00 | 0.55 | -21.88 | 82.32 | 54.45 | 243.61 | 0.8449 | 606.0 | 535.0 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -22.14 | 82.24 | 54.37 | 243.29 | 0.8449 | 398.0 | 522.7 | |
| 0.00 | 0.43 | 0.00 | 0.37 | -19.78 | 80.12 | 52.25 | 245.41 | 0.8204 | -301.0 | -308.0 | |
| 0.00 | 0.51 | 0.00 | 0.45 | -20.82 | 80.52 | 52.65 | 244.30 | 0.8268 | -124.0 | -145.7 | |
| 0.00 | 1.11 | 0.00 | 0.96 | -20.54 | 80.28 | 52.40 | 244.56 | 0.8238 | -189.0 | -116.9 | |
| 0.00 | 2.99 | 0.00 | 2.58 | -20.69 | 79.94 | 52.06 | 244.28 | 0.8212 | -590.0 | -408.8 | |
| 0.00 | 1.45 | 0.00 | 1.23 | -19.59 | 79.32 | 51.45 | 245.40 | 0.8126 | -322.0 | -368.5 | |
| 0.00 | 3.24 | 0.00 | 2.76 | -20.38 | 79.37 | 51.50 | 244.48 | 0.8152 | -720.0 | -508.1 | |
| 0.00 | 0.68 | 0.00 | 0.58 | -21.10 | 79.26 | 51.39 | 243.58 | 0.8162 | 528.0 | 494.9 | |
| 0.00 | 0.85 | 0.00 | 0.72 | -20.82 | 79.07 | 51.20 | 243.86 | 0.8137 | 613.0 | 521.4 | |
| 0.00 | 2.64 | 0.00 | 2.26 | -21.39 | 79.20 | 51.32 | 243.23 | 0.8165 | 274.0 | 222.4 | |
| 0.77 | 3.41 | 0.65 | 2.88 | -21.32 | 78.76 | 50.89 | 243.16 | 0.8123 | -32.6 | 148.3 | |
| 0.00 | 1.96 | 0.00 | 1.60 | -20.05 | 77.53 | 49.66 | 244.27 | 0.7971 | -500.0 | -419.1 | |
| 0.00 | 0.77 | 0.00 | 0.63 | -20.84 | 77.34 | 49.47 | 243.26 | 0.7977 | -389.0 | -381.9 | |
| 0.00 | 0.68 | 0.00 | 0.55 | -20.02 | 76.84 | 48.97 | 244.08 | 0.7904 | -521.0 | -503.0 | |
| 0.00 | 1.11 | 0.00 | 0.92 | -22.56 | 77.66 | 49.78 | 241.32 | 0.8061 | -248.0 | -274.5 | |
| 0.00 | 1.11 | 0.00 | 0.89 | -20.96 | 76.28 | 48.41 | 242.73 | 0.7880 | -530.0 | -405.0 | |
| 0.00 | 1.28 | 0.00 | 1.03 | -23.94 | 75.25 | 47.38 | 238.76 | 0.7889 | -534.0 | -451.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
