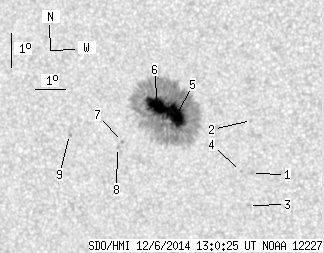

SDO HMI 2014-12-06 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.90 | 321.61 | 27.65 | 178.21 | -3.63 | 0.95 | -26.38 | 98.54 | 0.4502 | 1077.2 | 370.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.65 | -5.46 | 3.65 | -23.68 | 103.82 | 0.4134 | 673.0 | 519.5 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -3.88 | 3.71 | -23.62 | 100.07 | 0.4077 | 464.0 | 438.9 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -6.41 | 3.51 | -23.82 | 105.96 | 0.4192 | -50.0 | -76.8 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -5.40 | 3.29 | -24.03 | 103.49 | 0.4187 | 708.0 | 516.7 | |
| 23.54 | 313.16 | 13.01 | 173.54 | -3.74 | 1.26 | -26.06 | 98.86 | 0.4456 | 1378.0 | 373.9 | |
| 26.36 | -5.00 | 14.64 | -5.00 | -3.47 | 0.64 | -26.68 | 98.09 | 0.4546 | 1156.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -4.51 | 359.44 | -27.89 | 99.94 | 0.4754 | 709.0 | 636.5 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -4.69 | 359.26 | -28.06 | 100.26 | 0.4785 | 641.0 | 504.8 | |
| 0.00 | 1.28 | 0.00 | 0.73 | -4.30 | 357.65 | -29.67 | 98.99 | 0.5018 | -684.0 | -567.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
