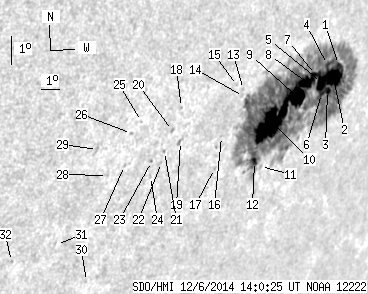

SDO HMI 2014-12-06 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 147.05 | 790.10 | 150.94 | 806.71 | -19.50 | 85.75 | 58.97 | 247.43 | 0.8765 | 682.4 | 225.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.26 | 766.82 | 0.28 | 786.13 | -18.32 | 87.82 | 61.05 | 249.18 | 0.8906 | 404.3 | 236.0 | |
| 21.58 | -1.00 | 23.31 | -1.00 | -18.72 | 87.74 | 60.97 | 248.71 | 0.8906 | 538.2 | 999999 | |
| 3.07 | -1.00 | 3.31 | -1.00 | -19.13 | 87.61 | 60.83 | 248.24 | 0.8902 | 372.2 | 999999 | |
| 1.36 | -1.00 | 1.44 | -1.00 | -18.31 | 87.11 | 60.34 | 249.05 | 0.8853 | 517.1 | 999999 | |
| 12.54 | -1.00 | 13.27 | -1.00 | -18.88 | 87.07 | 60.29 | 248.41 | 0.8858 | 753.5 | 999999 | |
| 2.47 | -1.00 | 2.63 | -1.00 | -19.22 | 87.28 | 60.50 | 248.07 | 0.8879 | 545.9 | 999999 | |
| 5.12 | -1.00 | 5.33 | -1.00 | -18.62 | 86.54 | 59.76 | 248.59 | 0.8814 | 695.0 | 999999 | |
| 14.50 | -1.00 | 14.92 | -1.00 | -18.87 | 86.12 | 59.35 | 248.23 | 0.8786 | 966.4 | 999999 | |
| 23.54 | -1.00 | 24.03 | -1.00 | -19.31 | 85.76 | 58.99 | 247.66 | 0.8765 | 798.6 | 999999 | |
| 58.77 | -1.00 | 58.60 | -1.00 | -20.12 | 84.73 | 57.95 | 246.52 | 0.8698 | 936.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 1.73 | -21.52 | 84.92 | 58.14 | 245.00 | 0.8739 | 284.0 | 322.2 | |
| 3.84 | -1.00 | 3.82 | -1.00 | -21.35 | 84.46 | 57.68 | 245.07 | 0.8700 | 733.8 | 999999 | |
| 0.00 | 1.19 | 0.00 | 1.11 | -19.07 | 82.54 | 55.76 | 247.19 | 0.8497 | -171.0 | 53.6 | |
| 0.00 | 1.79 | 0.00 | 1.68 | -19.29 | 82.65 | 55.87 | 246.96 | 0.8511 | 621.0 | 332.6 | |
| 0.00 | 0.68 | 0.00 | 0.63 | -18.95 | 82.14 | 55.36 | 247.24 | 0.8461 | -271.0 | -149.2 | |
| 0.00 | 0.60 | 0.00 | 0.56 | -20.55 | 82.08 | 55.31 | 245.38 | 0.8491 | 324.0 | 255.7 | |
| 0.00 | 1.02 | 0.00 | 0.96 | -21.57 | 82.26 | 55.49 | 244.26 | 0.8528 | 331.0 | 377.8 | |
| 0.00 | 0.85 | 0.00 | 0.74 | -19.62 | 79.46 | 52.69 | 245.73 | 0.8240 | -424.0 | -430.0 | |
| 0.00 | 2.73 | 0.00 | 2.41 | -20.70 | 79.93 | 53.16 | 244.61 | 0.8309 | -463.0 | -395.5 | |
| 0.00 | 1.62 | 0.00 | 1.41 | -20.35 | 79.34 | 52.56 | 244.84 | 0.8247 | -548.0 | -481.5 | |
| 0.00 | 1.11 | 0.00 | 0.97 | -21.01 | 79.25 | 52.47 | 244.03 | 0.8257 | 635.0 | 509.4 | |
| 0.00 | 0.68 | 0.00 | 0.60 | -21.36 | 79.27 | 52.49 | 243.63 | 0.8268 | 443.0 | 316.1 | |
| 0.00 | 1.11 | 0.00 | 0.96 | -21.33 | 78.73 | 51.96 | 243.51 | 0.8219 | -184.0 | -33.4 | |
| 0.00 | 1.54 | 0.00 | 1.34 | -21.80 | 78.92 | 52.15 | 243.01 | 0.8249 | -217.0 | -215.1 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -20.05 | 77.62 | 50.84 | 244.66 | 0.8082 | -502.0 | -487.3 | |
| 0.00 | 1.11 | 0.00 | 0.92 | -20.43 | 77.29 | 50.51 | 244.10 | 0.8062 | -593.0 | -420.1 | |
| 0.00 | 1.02 | 0.00 | 0.86 | -21.45 | 77.41 | 50.64 | 242.93 | 0.8104 | -313.0 | -260.5 | |
| 0.00 | 0.85 | 0.00 | 0.71 | -21.76 | 76.71 | 49.94 | 242.32 | 0.8049 | -482.0 | -447.9 | |
| 0.00 | 1.36 | 0.00 | 1.11 | -20.93 | 75.84 | 49.07 | 243.01 | 0.7942 | -679.0 | -507.7 | |
| 0.00 | 0.51 | 0.00 | 0.44 | -25.19 | 77.45 | 50.67 | 238.58 | 0.8225 | -443.0 | -385.3 | |
| 0.00 | 0.43 | 0.00 | 0.35 | -23.97 | 75.28 | 48.51 | 239.17 | 0.7993 | -352.0 | -454.2 | |
| 0.00 | 1.11 | 0.00 | 0.88 | -24.51 | 73.38 | 46.60 | 237.75 | 0.7840 | -459.0 | -424.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
