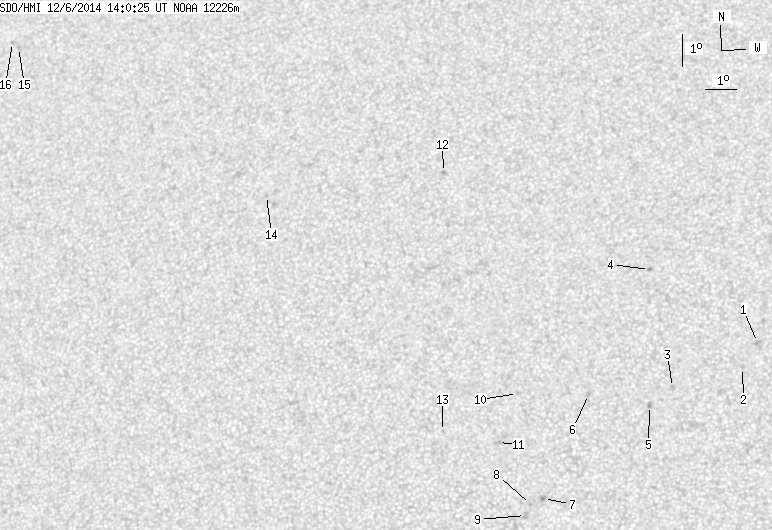

SDO HMI 2014-12-06 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 28.23 | 0.00 | 14.83 | 14.57 | 16.56 | -10.22 | 32.31 | 0.3069 | -554.2 | -504.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.22 | 0.00 | 1.14 | 14.84 | 24.44 | -2.34 | 8.87 | 0.2570 | -941.0 | -761.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.08 | 23.99 | -2.79 | 11.12 | 0.2456 | -786.0 | -605.6 | |
| 0.00 | 2.13 | 0.00 | 1.09 | 13.48 | 21.86 | -4.91 | 19.93 | 0.2454 | -673.0 | -546.6 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.09 | 21.07 | -5.71 | 18.12 | 0.3070 | -971.0 | -821.5 | |
| 0.00 | 2.30 | 0.00 | 1.18 | 12.93 | 21.17 | -5.60 | 23.35 | 0.2411 | -961.0 | -781.4 | |
| 0.00 | 2.13 | 0.00 | 1.09 | 13.27 | 19.30 | -7.47 | 29.24 | 0.2603 | -882.0 | -633.2 | |
| 0.00 | 2.05 | 0.00 | 1.04 | 10.13 | 18.02 | -8.75 | 40.97 | 0.2295 | -1147.0 | -909.7 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 9.95 | 17.63 | -9.14 | 42.73 | 0.2317 | -920.0 | -735.6 | |
| 0.00 | 2.64 | 0.00 | 1.35 | 9.62 | 17.49 | -9.29 | 44.17 | 0.2293 | -718.0 | -657.0 | |
| 0.00 | 1.28 | 0.00 | 0.66 | 13.30 | 17.13 | -9.65 | 35.75 | 0.2805 | -928.0 | -755.3 | |
| 0.00 | 3.50 | 0.00 | 1.80 | 11.82 | 16.60 | -10.18 | 40.66 | 0.2667 | -654.0 | -587.7 | |
| 0.00 | 1.54 | 0.00 | 0.83 | 20.11 | 14.40 | -12.37 | 30.56 | 0.3973 | -848.0 | -637.4 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 12.15 | 14.86 | -11.91 | 44.26 | 0.2905 | -696.0 | -577.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 19.39 | 8.71 | -18.06 | 41.64 | 0.4420 | 772.0 | 526.2 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 24.10 | 359.36 | -27.42 | 46.03 | 0.5863 | 853.0 | 590.6 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 24.27 | 359.10 | -27.68 | 46.06 | 0.5904 | 632.0 | 488.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
