SDO HMI 2014-12-06 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.03 | 333.29 | 30.61 | 182.14 | -3.61 | 0.98 | -24.69 | 99.01 | 0.4239 | 1165.7 | 360.1 | |
|
previous
or next observation for the same group /

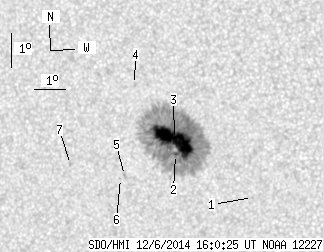

back to the solar disc SDO HMI 2014-12-06 16:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.41 | -5.31 | 3.46 | -22.21 | 104.27 | 0.3901 | 640.0 | 503.3 | |
| 1.11 | 328.59 | 0.61 | 179.55 | -4.04 | 1.02 | -24.65 | 100.02 | 0.4243 | 729.2 | 362.0 | |
| 54.92 | -2.00 | 30.00 | -2.00 | -3.59 | 1.00 | -24.67 | 98.97 | 0.4235 | 1315.9 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.38 | -1.97 | 359.73 | -25.94 | 94.89 | 0.4406 | 672.0 | 644.2 | |
| 0.00 | 1.88 | 0.00 | 1.04 | -4.66 | 359.32 | -26.35 | 100.79 | 0.4523 | 712.0 | 530.9 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -4.75 | 359.19 | -26.49 | 100.93 | 0.4546 | 365.0 | 450.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -4.34 | 357.54 | -28.14 | 99.49 | 0.4788 | -800.0 | -675.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
