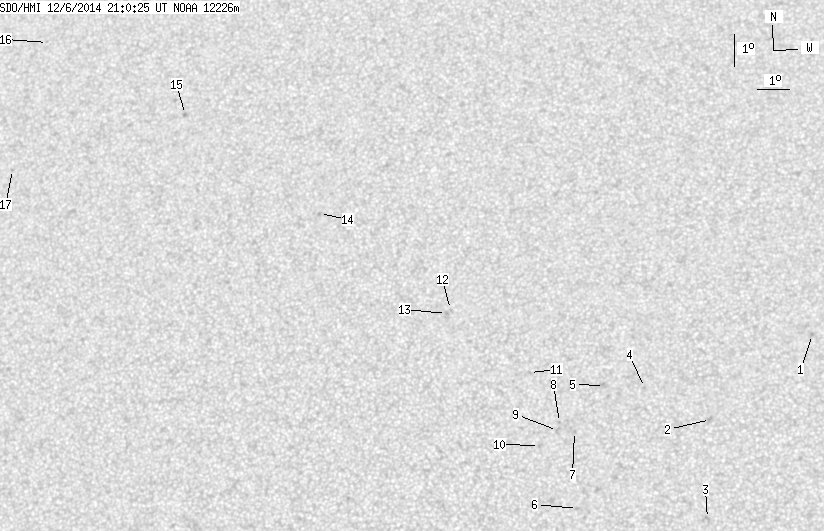

SDO HMI 2014-12-06 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.80 | 0.00 | 12.93 | 14.40 | 15.06 | -7.85 | 355.18 | 0.2862 | -479.6 | -397.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-06 21:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.70 | 14.90 | 24.60 | 1.69 | 353.60 | 0.2570 | -941.0 | -777.2 | |
| 0.00 | 2.13 | 0.00 | 1.08 | 12.32 | 21.50 | -1.41 | 6.53 | 0.2128 | -823.0 | -666.6 | |
| 0.00 | 1.79 | 0.00 | 0.90 | 9.35 | 21.42 | -1.49 | 9.16 | 0.1623 | -892.0 | -656.0 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 13.29 | 19.49 | -3.42 | 14.35 | 0.2354 | -897.0 | -681.3 | |
| 0.00 | 3.33 | 0.00 | 1.70 | 13.36 | 18.27 | -4.64 | 19.04 | 0.2424 | -778.0 | -639.7 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 9.65 | 17.51 | -5.39 | 29.36 | 0.1899 | -904.0 | -721.9 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 11.97 | 17.38 | -5.52 | 24.74 | 0.2261 | -839.0 | -656.9 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 12.24 | 16.92 | -5.98 | 25.99 | 0.2336 | -886.0 | -730.9 | |
| 0.00 | 2.30 | 0.00 | 1.17 | 12.00 | 16.87 | -6.04 | 26.67 | 0.2304 | -738.0 | -762.1 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 11.55 | 16.33 | -6.58 | 29.64 | 0.2279 | -822.0 | -647.1 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 13.75 | 15.97 | -6.94 | 26.55 | 0.2637 | -771.0 | -591.8 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 15.68 | 13.46 | -9.44 | 30.58 | 0.3119 | -708.0 | -549.1 | |
| 0.00 | 1.53 | 0.00 | 0.80 | 15.56 | 13.34 | -9.56 | 31.10 | 0.3112 | -869.0 | -661.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 18.65 | 9.14 | -13.77 | 35.43 | 0.3906 | 941.0 | 761.1 | |
| 0.00 | 1.96 | 0.00 | 1.10 | 21.76 | 4.42 | -18.49 | 38.66 | 0.4734 | 656.0 | 569.0 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 24.08 | 359.30 | -23.61 | 42.05 | 0.5481 | 430.0 | 473.4 | |
| 0.00 | 1.19 | 0.00 | 0.69 | 20.03 | 358.80 | -24.11 | 48.47 | 0.5147 | 687.0 | 554.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
