SDO HMI 2014-12-07 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.34 | 0.00 | 11.50 | 13.70 | 15.55 | -2.41 | 346.53 | 0.2546 | -547.1 | -423.8 | |
|
previous
or next observation for the same group /

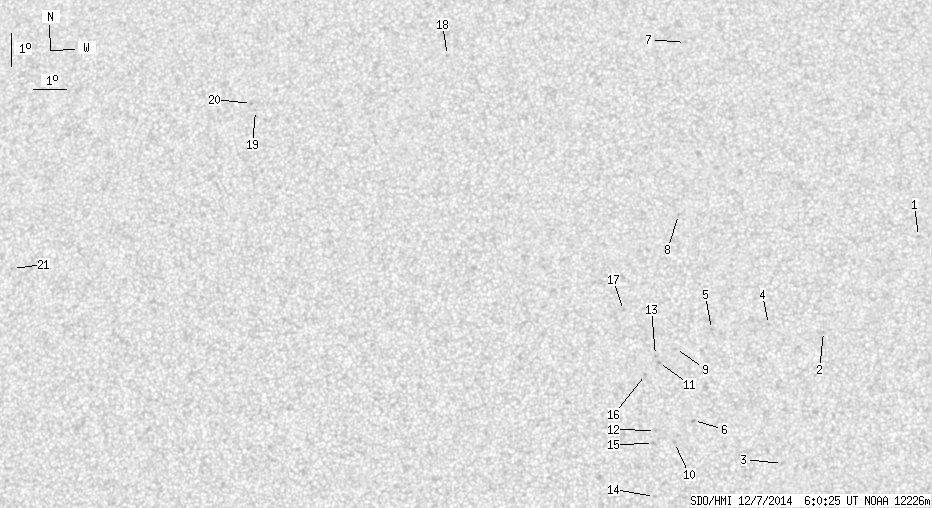

back to the solar disc SDO HMI 2014-12-07 06:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.53 | 16.02 | 25.22 | 7.25 | 336.14 | 0.3012 | -704.0 | -602.4 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 13.12 | 22.22 | 4.25 | 342.22 | 0.2377 | -789.0 | -601.2 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 9.15 | 20.93 | 2.96 | 342.03 | 0.1661 | -878.0 | -620.0 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 13.34 | 20.55 | 2.59 | 349.15 | 0.2342 | -814.0 | -587.7 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 13.19 | 18.82 | 0.85 | 356.33 | 0.2279 | -853.0 | -712.1 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 10.44 | 18.27 | 0.30 | 358.35 | 0.1804 | -1004.0 | -821.1 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 22.09 | 18.05 | 0.08 | 359.80 | 0.3760 | -755.0 | -591.7 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 16.70 | 17.82 | -0.15 | 0.49 | 0.2870 | -746.0 | -575.5 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 12.61 | 17.73 | -0.24 | 1.07 | 0.2177 | -728.0 | -464.9 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 9.78 | 17.70 | -0.27 | 1.58 | 0.1690 | -958.0 | -679.7 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 12.19 | 17.22 | -0.75 | 3.50 | 0.2108 | -1071.0 | -861.5 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 10.14 | 17.13 | -0.84 | 4.73 | 0.1758 | -797.0 | -617.5 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 12.40 | 17.13 | -0.84 | 3.86 | 0.2145 | -876.0 | -733.1 | |
| 0.00 | 1.02 | 0.00 | 0.51 | 8.17 | 17.10 | -0.87 | 6.09 | 0.1418 | -865.0 | -654.4 | |
| 0.00 | 1.71 | 0.00 | 0.86 | 9.76 | 17.07 | -0.90 | 5.27 | 0.1692 | -702.0 | -570.2 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 11.83 | 16.82 | -1.14 | 5.49 | 0.2051 | -943.0 | -750.7 | |
| 0.00 | 0.68 | 0.00 | 0.35 | 13.77 | 16.15 | -1.82 | 7.44 | 0.2393 | -781.0 | -583.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 21.69 | 10.46 | -7.51 | 18.26 | 0.3891 | 786.0 | 635.9 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 19.95 | 4.41 | -13.56 | 32.98 | 0.4066 | 603.0 | 434.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 20.18 | 4.26 | -13.71 | 32.95 | 0.4108 | 853.0 | 592.4 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 15.07 | 356.98 | -20.98 | 53.24 | 0.4335 | 532.0 | 411.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
