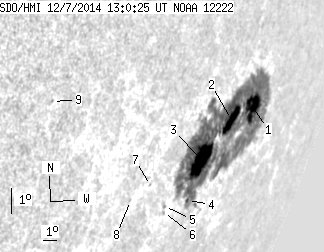

SDO HMI 2014-12-07 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.25 | 492.44 | 125.30 | 812.54 | -19.65 | 85.39 | 71.25 | 249.30 | 0.9543 | 413.7 | 164.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-07 13:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.77 | 487.40 | 41.23 | 805.79 | -18.79 | 87.31 | 73.16 | 250.41 | 0.9630 | 270.8 | 164.3 | |
| 17.23 | -1.00 | 28.43 | -1.00 | -19.19 | 85.55 | 71.41 | 249.81 | 0.9551 | 421.9 | 999999 | |
| 34.97 | -1.00 | 53.65 | -1.00 | -20.45 | 83.97 | 69.83 | 248.31 | 0.9479 | 570.6 | 999999 | |
| 1.28 | -1.00 | 1.99 | -1.00 | -21.75 | 84.05 | 69.90 | 246.96 | 0.9493 | -46.9 | 999999 | |
| 0.00 | 1.88 | 0.00 | 2.68 | -21.93 | 82.18 | 68.03 | 246.51 | 0.9396 | 493.0 | 465.9 | |
| 0.00 | 1.28 | 0.00 | 1.84 | -22.12 | 82.29 | 68.14 | 246.32 | 0.9403 | 379.0 | 322.2 | |
| 0.00 | 0.43 | 0.00 | 0.56 | -21.26 | 80.38 | 66.23 | 246.94 | 0.9286 | 68.0 | 135.4 | |
| 0.00 | 0.85 | 0.00 | 1.08 | -21.73 | 79.24 | 65.09 | 246.25 | 0.9222 | -260.0 | -233.2 | |
| 0.00 | 0.60 | 0.00 | 0.59 | -18.59 | 71.92 | 57.78 | 248.28 | 0.8652 | -450.0 | -335.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
