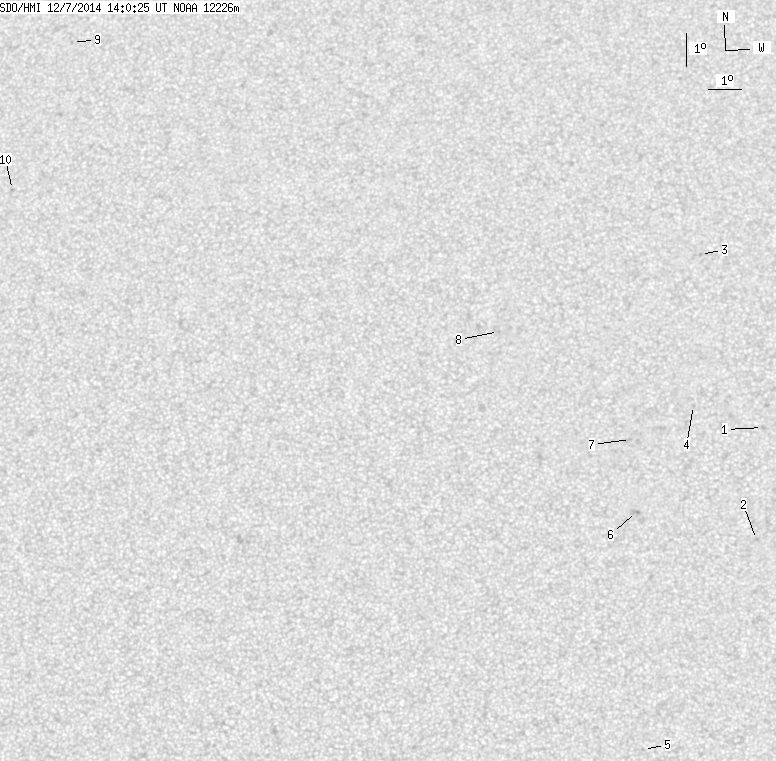

SDO HMI 2014-12-07 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.12 | 0.00 | 6.79 | 13.87 | 14.60 | 1.00 | 346.99 | 0.2681 | -498.2 | -416.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-12-07 14:00:25 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.83 | 12.63 | 21.18 | 7.59 | 329.36 | 0.2539 | -851.0 | -660.5 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 9.26 | 20.91 | 7.31 | 321.81 | 0.2042 | -834.0 | -661.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 17.93 | 19.45 | 5.85 | 342.45 | 0.3231 | -714.0 | -477.0 | |
| 0.00 | 1.28 | 0.00 | 0.65 | 13.30 | 19.10 | 5.50 | 337.82 | 0.2482 | -710.0 | -540.1 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 3.03 | 17.46 | 3.86 | 307.48 | 0.0852 | -656.0 | -482.0 | |
| 0.00 | 2.47 | 0.00 | 1.25 | 10.11 | 17.32 | 3.72 | 339.88 | 0.1864 | -1000.0 | -837.8 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 12.27 | 17.16 | 3.57 | 343.95 | 0.2209 | -865.0 | -598.9 | |
| 0.00 | 1.02 | 0.00 | 0.53 | 15.56 | 13.17 | -0.42 | 1.53 | 0.2684 | -817.0 | -661.7 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 24.68 | 359.16 | -14.44 | 28.55 | 0.4760 | 646.0 | 487.3 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 19.99 | 357.69 | -15.90 | 37.09 | 0.4289 | 819.0 | 616.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
